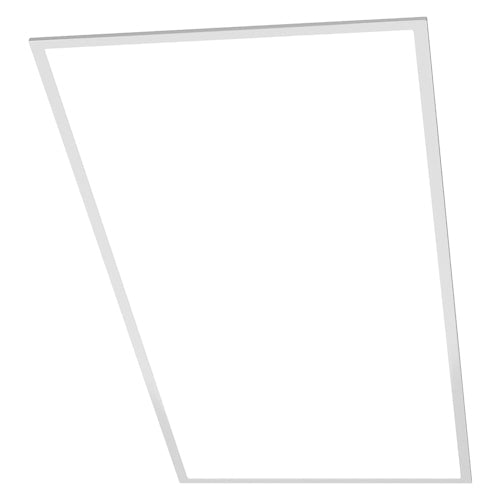

Energetic Lighting E2BPL4-H36D-850 Flat Panel 2x4, 36W, 5000K Dimmable

Energetic Lighting E2BPL4-H36D-850 Flat Panel 2x4, 36W, 5000K Dimmable

Regular price $50.00 USD
Regular price Sale price $50.00 USD
Sale Sold out

FREE SHIPPING

Energetic Lighting’s E2BPL series is suitable for use in a broad range of commercial applications. Utilizing today’s latest innovative LED solutions and technologies paired with world class manufacturing practices, the E2BPL provides customers an affordable LED back-lit panel offering with the perfect blend of design, performance, value and reliability.   An extremely versatile product thanks to its low-profile design that is as shallow as many other higher priced edge-lit panels available today. As a result the E2BPL is well suited for installations with shallow plenum access. With our integral ezCCT field-selectable CCT along with ezWATT field-selectable wattage, these panels extend use to a broad range of commercial and industrial applications.   The E2BPL is a great choice for renovation opportunities replacing existing fluorescent luminaires or for new construction projects that require code compliant energy saving LED solutions. Ideally suited for office spaces, schools, retail, hospitality and healthcare applications, the E2BPL provides high quality illumination with optimal energy savings.

Features:

  • Acrylic over-optics with polymer diffusing lens creates an extremely uniform visual aesthetic and provides target uniform illumination.
  • 125+ LPW provides 40-60% in energy savings vs. fluorescent
  • Die-formed steel housing won’t flex during installation
  • Reduced weight design makes for easier installation (as much as 50% weight reduction compared to edge-lit equivalents)
  • 88% lumen maintenance @ 60,000 hours – L88/60,000 (per IES TM21)
  • Projected L70 @ 174,000 hours = maintenance free illumination (per IES TM21)

Applications:

  • Indoor, Industrial, and Commercial
  • Office, Healthcare, and Educational
  • Hospitality and Grocery
  • Retail, and Hallways

Specifications:

  • Model Number: E2BPL4-H36D-850
  • Configuration: 2x4
  • Body Color/Finish: White
  • Beam Angle: 100
  • Lumens(lm): 4500
  • Luminous Efficacy: 125
  • Input Power: 36W
  • Input Voltage: 120-347V
  • Power Factor: 0.9
  • THD: <20%
  • Color Temp: 5000K
  • Color Rend (CRI):
  • Ra80
  • Lifetime Rating: >54,000 hours
  • Warranty: 5yr Limited
  • Dimmability: 0-10V
  • Operating Temp: -13 to 113
  • Environment: Damp
  • Safety Listing: UL
  • Performance Listing: DLC5.1-P
  • Weight: 4.9
  • Dimensions: 47.8 x 23.8 x 2
  • Eclipse Optic Tech
  • 60 Day Returns
  • 5 Year Warranty
