Commercial LED Explosion Proof Lights

Facilities that handle flammable gases, combustible dust, chemical vapors, or ignitable fibers require lighting specifically engineered to operate safely in hazardous environments. In these locations, using standard commercial lighting can create unnecessary risk because electrical equipment may become an ignition source if not properly designed for the environment.

Commercial LED explosion proof lights are engineered to help reduce ignition risks while delivering reliable, high-performance illumination in hazardous locations. Built with rugged housings, sealed components, and certifications for classified environments, these fixtures are designed to withstand demanding industrial conditions while providing the energy savings and long service life of modern LED technology.

SteelTechLights supplies a complete line of commercial explosion proof LED lighting for oil and gas facilities, chemical processing plants, manufacturing operations, wastewater treatment plants, grain elevators, food processing facilities, marine environments, and numerous other hazardous applications. Whether you're replacing aging HID fixtures or designing a new hazardous location lighting system, our commercial lighting specialists can help you select code-appropriate fixtures that deliver dependable performance and long-term value.

What Are LED Explosion Proof Lights?

Despite the name, explosion proof lights do not prevent explosions. Instead, they are specifically engineered to contain any internal spark or ignition event within the fixture housing, preventing it from igniting flammable gases, vapors, combustible dust, or fibers present in the surrounding atmosphere.

These fixtures utilize heavy-duty enclosed housings, reinforced lens assemblies, sealed electrical compartments, and specially engineered conduit entries to isolate electrical components from hazardous environments.

Commercial explosion proof fixtures are commonly installed in locations where explosive atmospheres may exist due to the normal operation of equipment or accidental releases of hazardous materials. Properly specified hazardous location lighting helps facilities comply with applicable electrical codes while supporting safe operation in demanding industrial environments.

Compared to traditional HID explosion proof fixtures, LED technology provides higher efficiency, improved light quality, longer service life, and significantly reduced maintenance requirements.

Why Explosion Proof Lighting Is Required

Many industrial operations involve materials capable of creating explosive atmospheres under certain conditions. Even a small electrical arc or hot surface from an improperly rated fixture could ignite these materials if appropriate hazardous location equipment is not used.

Explosion proof lighting helps minimize this risk by providing fixtures specifically designed and certified for hazardous environments.

Facilities commonly requiring hazardous location lighting include:

• Oil refineries
• Petrochemical plants
• Natural gas processing facilities
• Chemical manufacturing
• Paint booths
• Grain elevators
• Flour mills
• Food processing plants
• Wastewater treatment plants
• Pharmaceutical manufacturing
• Mining operations
• Fuel storage facilities
• Aircraft hangars
• Marine terminals
• Battery charging rooms

Because every hazardous environment presents different risks, selecting the correct fixture classification is critical for both safety and code compliance.

Understanding Hazardous Location Classifications

One of the most important considerations when selecting explosion proof lighting is understanding hazardous location classifications established by the National Electrical Code (NEC).

These classifications identify the type of hazardous material present and the likelihood that an explosive atmosphere may exist.

Class I Hazardous Locations

Class I environments contain flammable gases or vapors that may ignite if exposed to an electrical spark or sufficiently hot surface.

Typical Class I applications include:

• Oil refineries
• Fuel terminals
• Gas compressor stations
• Chemical plants
• Petroleum processing facilities
• Solvent storage
• Aircraft fueling areas
• Paint spray operations

These facilities often require Class I Division 1 or Class I Division 2 certified lighting depending on the operating conditions.

Class II Hazardous Locations

Class II locations contain combustible dust capable of becoming suspended in the air and creating an explosion hazard.

Industries commonly classified as Class II include:

• Grain elevators
• Flour mills
• Feed mills
• Food processing
• Woodworking facilities
• Sugar processing
• Pharmaceutical production
• Metal powder manufacturing

Dust accumulation can present significant ignition hazards, making properly rated lighting essential.

Class III Hazardous Locations

Class III environments contain ignitable fibers or flyings rather than combustible dust or flammable gases.

Examples include:

• Textile manufacturing
• Cotton processing
• Paper mills
• Wood fiber processing
• Upholstery manufacturing

Although these materials are generally not suspended in the air like dust, they can accumulate around electrical equipment and create fire hazards if improperly protected.

Division Classifications

Hazardous locations are further divided according to how frequently hazardous materials are present.

Division 1

Division 1 locations are areas where hazardous gases, vapors, or combustible dust are present during normal operating conditions or are expected to exist frequently.

Because these environments present the greatest risk, Division 1 fixtures are engineered to meet the most demanding hazardous location requirements.

Common examples include:

• Mixing tanks
• Chemical reactors
• Refining equipment
• Pump stations
• Fuel transfer areas

Division 2

Division 2 locations are areas where hazardous materials are not normally present, but could appear under abnormal operating conditions such as equipment failure, accidental leaks, or maintenance activities.

Many industrial facilities contain significantly more Division 2 spaces than Division 1 areas.

Typical Division 2 applications include:

• Adjacent processing rooms
• Equipment service areas
• Mechanical rooms
• Utility spaces
• Packaging areas
• Storage facilities

Selecting the correct division rating helps ensure the fixture matches the actual environmental hazard while avoiding unnecessary project costs.

Zone Classification System

Some industrial facilities use the international Zone classification system rather than the Division system.

Zone classifications separate hazardous environments according to how often explosive atmospheres are expected to occur.

Common classifications include:

• Zone 0
• Zone 1
• Zone 2

These ratings are frequently encountered in global industrial projects, offshore platforms, marine applications, and multinational manufacturing facilities.

SteelTechLights can help customers determine whether Division-rated or Zone-rated fixtures are appropriate for their project requirements.

Benefits of LED Explosion Proof Lighting

Lower Energy Consumption

Modern LED explosion proof fixtures consume significantly less electricity than traditional metal halide or high-pressure sodium hazardous location fixtures while delivering exceptional illumination.

Facilities operating around the clock can realize substantial energy savings after upgrading to LED technology.

Longer Service Life

Replacing fixtures in hazardous locations is often difficult, expensive, and disruptive to operations.

Commercial LED explosion proof lights are engineered for extended operating life, greatly reducing maintenance requirements and minimizing costly shutdowns.

Improved Visibility

LED technology provides bright, uniform illumination that improves visibility throughout hazardous work areas.

Benefits include:

• Enhanced worker safety
• Better equipment visibility
• Improved inspection accuracy
• Reduced shadows
• Excellent color rendering
• Increased productivity

Instant-On Operation

Unlike traditional HID lighting, LED explosion proof fixtures illuminate immediately at full brightness.

This instant-on performance improves operational efficiency while allowing integration with occupancy sensors, scheduling controls, and emergency backup systems where appropriate.

Reduced Maintenance Costs

Because LEDs require fewer replacements and contain no fragile lamps or ballasts, maintenance costs are dramatically reduced over the life of the lighting system.

This is particularly valuable in hazardous areas where servicing fixtures may require specialized procedures or facility shutdowns.

Types of Commercial Explosion Proof LED Fixtures

SteelTechLights offers explosion proof lighting solutions for virtually every hazardous location application.

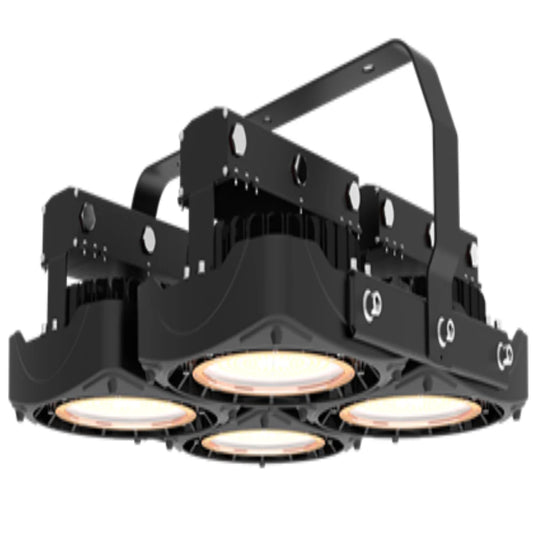

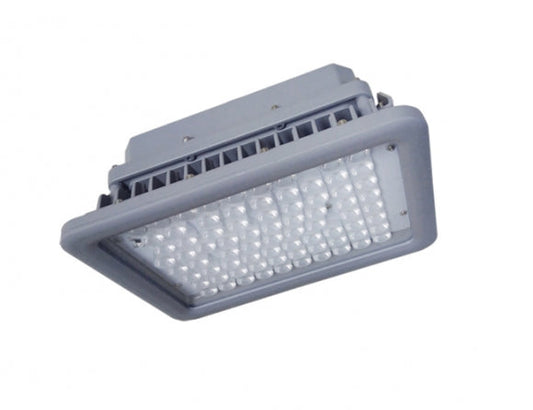

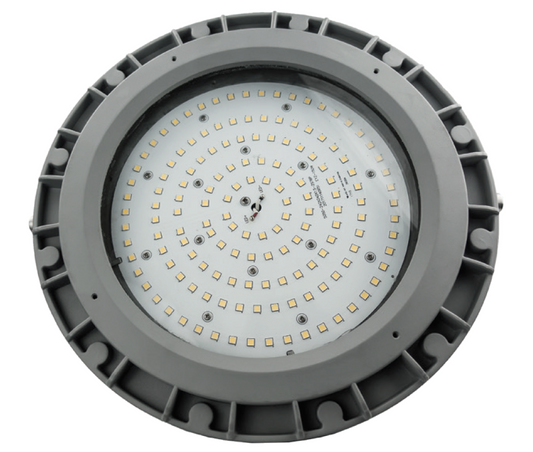

Explosion Proof High Bay Lights

Designed for facilities with high ceilings, explosion proof high bays provide powerful illumination for manufacturing plants, refineries, warehouses, and processing facilities.

These fixtures deliver high lumen output while maintaining excellent efficiency and uniform light distribution.

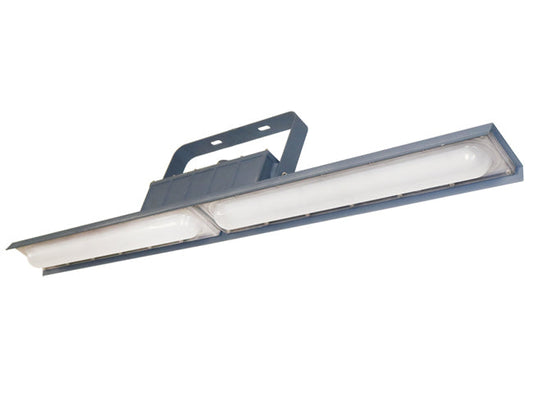

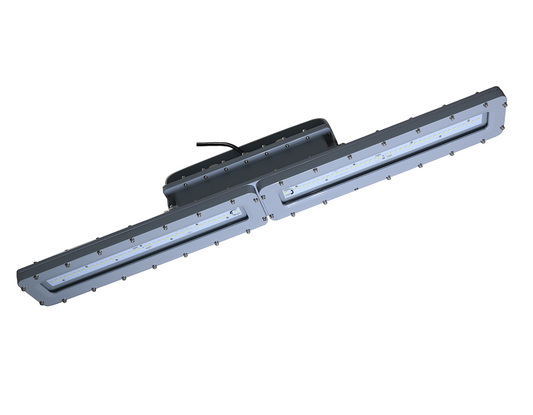

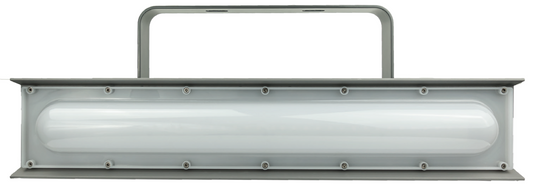

Explosion Proof Linear Fixtures

Linear explosion proof fixtures are ideal for walkways, production lines, maintenance areas, corridors, tunnels, and equipment rooms where long, continuous lighting is required.

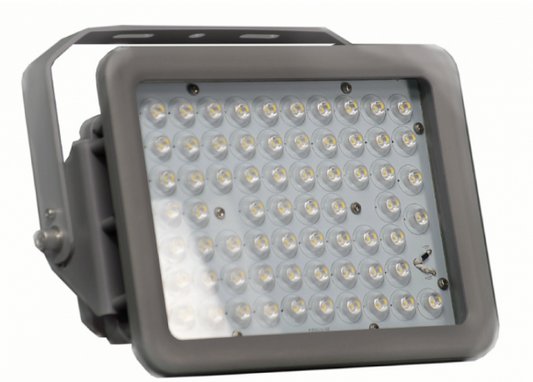

Explosion Proof Flood Lights

Flood lights provide broad-area illumination for outdoor hazardous locations, loading areas, tank farms, processing yards, and perimeter security lighting.

Adjustable mounting allows precise aiming for optimal coverage.

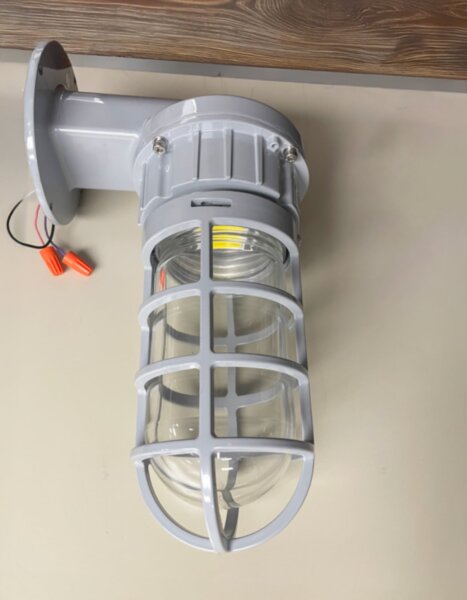

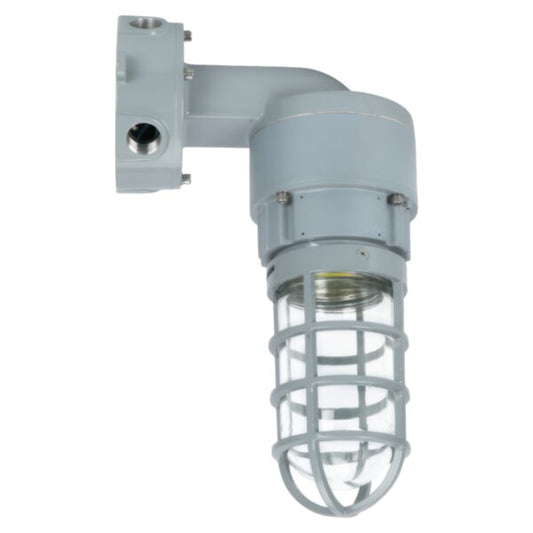

Explosion Proof Wall Packs

Wall-mounted explosion proof fixtures provide dependable lighting for building exteriors, entrances, stairwells, service areas, and emergency egress routes in hazardous environments.

Temporary Explosion Proof String Lights

Temporary hazardous location string lights provide portable illumination for maintenance shutdowns, construction projects, confined spaces, and turnaround operations where temporary lighting is required.

Commercial & Industrial Applications

SteelTechLights explosion proof lighting is trusted across numerous industries, including:

• Oil & gas production
• Refineries
• Petrochemical plants
• Chemical processing
• Food & beverage manufacturing
• Pharmaceutical facilities
• Grain handling
• Mining
• Marine terminals
• Wastewater treatment plants
• Paint manufacturing
• Battery rooms
• Fuel storage facilities
• Aircraft maintenance hangars
• Pulp & paper mills

Whether your project involves a single hazardous area or an entire industrial facility, SteelTechLights can help you select reliable LED explosion proof lighting designed for safety, efficiency, and long-term performance.

How to Choose the Right Explosion Proof Light

Selecting the correct explosion proof fixture requires more than choosing a lumen package. Every hazardous location has unique environmental conditions, electrical requirements, and regulatory standards that influence which fixture is appropriate.

Before selecting a fixture, consider the following:

• Hazardous location classification
• Class and Division or Zone rating
• Mounting height
• Required light levels
• Voltage requirements
• Operating temperature
• Corrosion exposure
• Moisture and dust protection
• Mounting method
• Beam distribution
• Indoor or outdoor installation

Choosing a fixture that matches the classified hazardous environment is essential for both worker safety and compliance with applicable electrical codes. When in doubt, consult the project specifications, electrical engineer, or Authority Having Jurisdiction (AHJ) to verify the correct classification before purchasing fixtures.

Class I Division 1 vs. Class I Division 2

One of the most common questions contractors and facility managers ask is whether they need Class I Division 1 or Class I Division 2 lighting.

Although the fixtures may appear similar, they are designed for different operating environments.

Class I Division 1

Class I Division 1 (C1D1) fixtures are designed for locations where flammable gases or vapors are present during normal operating conditions or are expected to exist frequently.

Typical C1D1 applications include:

• Chemical reactors
• Solvent mixing rooms
• Fuel transfer stations
• Refinery processing units
• Paint spray booths
• Tank farms
• Petroleum production facilities

Because these areas present the greatest ignition risk, C1D1 fixtures are engineered to meet the highest hazardous location requirements.

Class I Division 2

Class I Division 2 (C1D2) fixtures are intended for areas where flammable gases or vapors are not normally present, but could exist because of accidental leaks, equipment failures, or maintenance operations.

Typical applications include:

• Compressor rooms
• Equipment enclosures
• Utility rooms
• Mechanical spaces
• Adjacent process areas
• Packaging facilities
• Storage rooms

Since Division 2 environments generally present a lower level of hazard than Division 1 areas, C1D2 fixtures are often specified throughout the majority of industrial facilities.

Choosing the Right Lumen Package

Rather than selecting explosion proof fixtures based solely on wattage, commercial lighting systems should be designed around lumens, ceiling height, and the required foot-candle levels for the task being performed.

General recommendations include:

ApplicationRecommended Foot-CandlesEquipment Storage10–20 fcMechanical Rooms20–30 fcManufacturing30–50 fcChemical Processing30–50 fcMaintenance Shops50–75 fcInspection Areas75–100 fc

Higher light levels are typically recommended for detailed assembly, inspections, and quality control, while storage and utility spaces may require less illumination.

SteelTechLights can assist with fixture selection and spacing recommendations to help achieve the desired lighting levels while maximizing energy efficiency.

Beam Distribution

Different hazardous environments require different lighting patterns.

Wide Beam

Ideal for:

• Production floors
• Processing facilities
• Warehouses
• Tank farms
• Open industrial spaces

Wide beam optics provide broad, uniform coverage while minimizing dark spots.

Medium Beam

Suitable for:

• Maintenance areas
• Manufacturing lines
• Utility rooms
• Equipment rooms

Medium beam fixtures balance fixture spacing with illumination intensity.

Narrow Beam

Recommended for:

• High mounting heights
• Catwalks
• Outdoor process equipment
• Towers
• Vertical storage

Narrow optics focus more light onto distant work surfaces.

Mounting Options

Commercial explosion proof fixtures are available with multiple mounting configurations to suit different industrial applications.

Common mounting styles include:

• Pendant mount
• Ceiling mount
• Wall mount
• Trunnion mount
• Yoke mount
• Stanchion mount
• Pole mount
• Adjustable bracket mount

Selecting the appropriate mounting style helps maximize fixture performance while simplifying installation and maintenance.

Voltage Options

Industrial facilities often operate electrical systems that differ from standard commercial buildings.

SteelTechLights offers explosion proof fixtures with voltage options suitable for many industrial applications, including:

• 120V
• 277V
• 347V
• 480V
• Universal 120–277V
• Universal 277–480V

Always verify the electrical characteristics of the installation before selecting a fixture.

IP & NEMA Ratings

Hazardous locations frequently expose lighting equipment to water, dust, chemicals, vibration, and harsh weather conditions.

Many commercial explosion proof fixtures feature high Ingress Protection (IP) ratings that help protect internal electrical components from moisture and contaminants.

Common ratings include:

• IP65
• IP66
• IP67

Depending on the application, fixtures may also feature NEMA-rated housings designed to withstand demanding industrial environments.

Proper environmental protection helps ensure dependable performance while extending fixture life.

Temperature Ratings (T-Codes)

Explosion proof lighting fixtures are assigned temperature classifications, commonly referred to as T-Codes, which indicate the maximum surface temperature the fixture can reach during operation.

Selecting the appropriate T-Code is essential because the fixture's surface temperature must remain below the ignition temperature of the hazardous materials present.

Common classifications include:

• T1
• T2
• T3
• T4
• T5
• T6

The required T-Code varies depending on the specific chemicals, gases, vapors, or dusts present within the facility.

Corrosion Resistance for Harsh Environments

Many hazardous locations also expose lighting fixtures to corrosive chemicals, saltwater, fertilizers, washdown procedures, or airborne contaminants.

Commercial explosion proof fixtures are often constructed using:

• Copper-free aluminum housings
• Stainless steel hardware
• Tempered glass lenses
• Polyester powder-coated finishes
• Corrosion-resistant gaskets
• Sealed electrical compartments

These materials help provide long-term durability in marine, offshore, wastewater, food processing, and chemical manufacturing environments.

Complimentary Lighting Layout Assistance

Designing lighting for hazardous locations requires careful planning to ensure safe, efficient, and uniform illumination throughout the facility.

SteelTechLights provides complimentary lighting layout assistance to help determine:

• Fixture quantity
• Fixture spacing
• Recommended mounting height
• Average foot-candle levels
• Beam distribution
• Energy savings potential
• Replacement recommendations for existing HID fixtures

Our lighting specialists work with contractors, engineers, plant managers, and facility owners to develop lighting solutions tailored to each project's operational requirements.

Why Choose SteelTechLights?

SteelTechLights supplies commercial hazardous location lighting trusted by industrial professionals across North America.

Customers choose SteelTechLights because we provide:

• Commercial-grade LED explosion proof lights
• Class I Division 1 and Division 2 fixtures
• Class II and Class III hazardous location lighting
• Explosion proof high bays
• Linear hazardous location fixtures
• Explosion proof flood lights
• Wall pack fixtures
• Multiple mounting configurations
• High-efficiency LED technology
• Rugged corrosion-resistant construction
• Wide voltage compatibility
• Contractor pricing
• Volume discounts
• Complimentary lighting layout assistance
• Fast nationwide shipping
• Expert product support
• Manufacturer-backed warranties

Whether you're illuminating a refinery, chemical plant, grain facility, wastewater treatment plant, or manufacturing operation, SteelTechLights delivers dependable lighting solutions engineered for the most demanding hazardous environments.

Frequently Asked Questions

What does "explosion proof" mean?

Explosion proof fixtures are designed to contain any internal spark or ignition within the fixture housing, helping prevent ignition of hazardous gases, vapors, dust, or fibers present in the surrounding environment.

Are explosion proof lights waterproof?

Many models feature high IP ratings that provide protection against dust and water ingress, but the required environmental rating depends on the application.

What's the difference between Class I Division 1 and Division 2?

Class I Division 1 fixtures are designed for areas where flammable gases or vapors are present during normal operations, while Division 2 fixtures are intended for areas where hazardous materials are present only under abnormal conditions.

Can LED explosion proof lights replace metal halide fixtures?

Yes. LED explosion proof fixtures are a common upgrade from metal halide and high-pressure sodium fixtures, offering lower energy consumption, longer life, instant-on performance, and reduced maintenance.

What industries use explosion proof lighting?

Common industries include oil and gas, petrochemical processing, chemical manufacturing, wastewater treatment, food processing, grain handling, pharmaceuticals, mining, marine facilities, and aircraft maintenance.

What mounting options are available?

Depending on the fixture, options may include pendant, wall, ceiling, trunnion, yoke, stanchion, and pole mounting.

How long do LED explosion proof lights last?

Commercial LED hazardous location fixtures are commonly rated for 50,000 to 100,000 hours, significantly reducing maintenance compared to traditional HID lighting.

Do I need a Class I, Class II, or Class III fixture?

The correct classification depends on the specific hazards present in your facility. Always verify the hazardous location classification specified by the project engineer or Authority Having Jurisdiction (AHJ) before selecting a fixture.

Can SteelTechLights help with fixture selection?

Yes. Our team can help identify the appropriate hazardous location classification, recommend suitable fixtures, and provide lighting layout assistance for commercial and industrial projects.

Protect Hazardous Work Environments with Commercial LED Explosion Proof Lighting

When safety, reliability, and code compliance matter, SteelTechLights delivers commercial LED explosion proof lighting solutions engineered for demanding hazardous locations. From oil refineries and chemical plants to grain elevators, wastewater treatment facilities, and manufacturing operations, our fixtures provide dependable illumination while helping facilities improve energy efficiency and reduce maintenance costs.

Contact SteelTechLights today for expert guidance, contractor pricing, complimentary lighting layout assistance, and help selecting the right explosion proof lighting solution for your hazardous location application.
