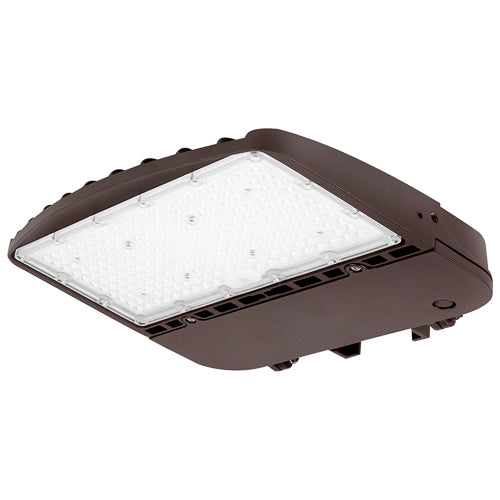

Energetic Lighting E4SBH100D3C-850 Shoebox 100W, 480V, 5000K Exterior Area Light
Energetic Lighting E4SBH100D3C-850 Shoebox 100W, 480V, 5000K Exterior Area Light
$163.00
/
FREE SHIPPING

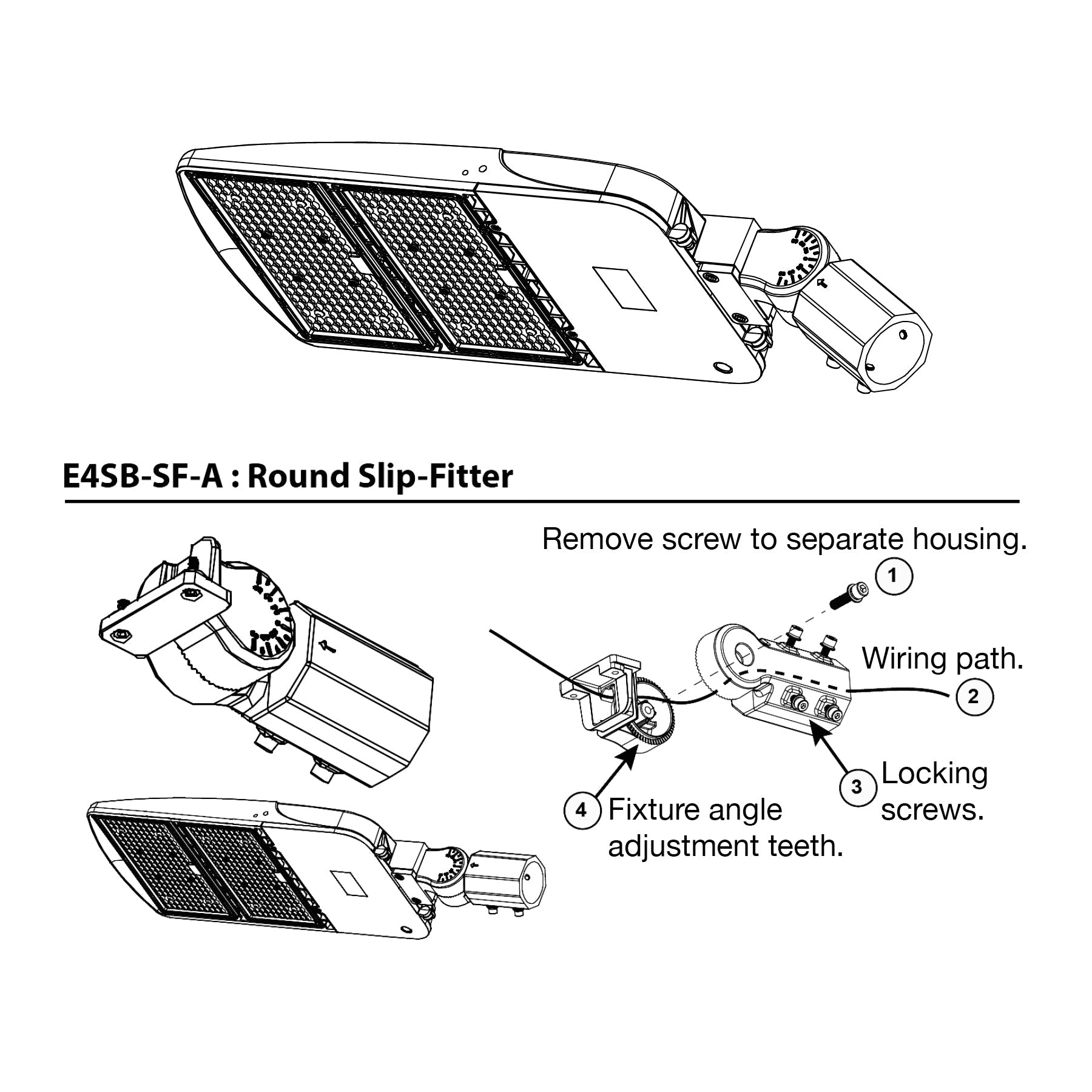

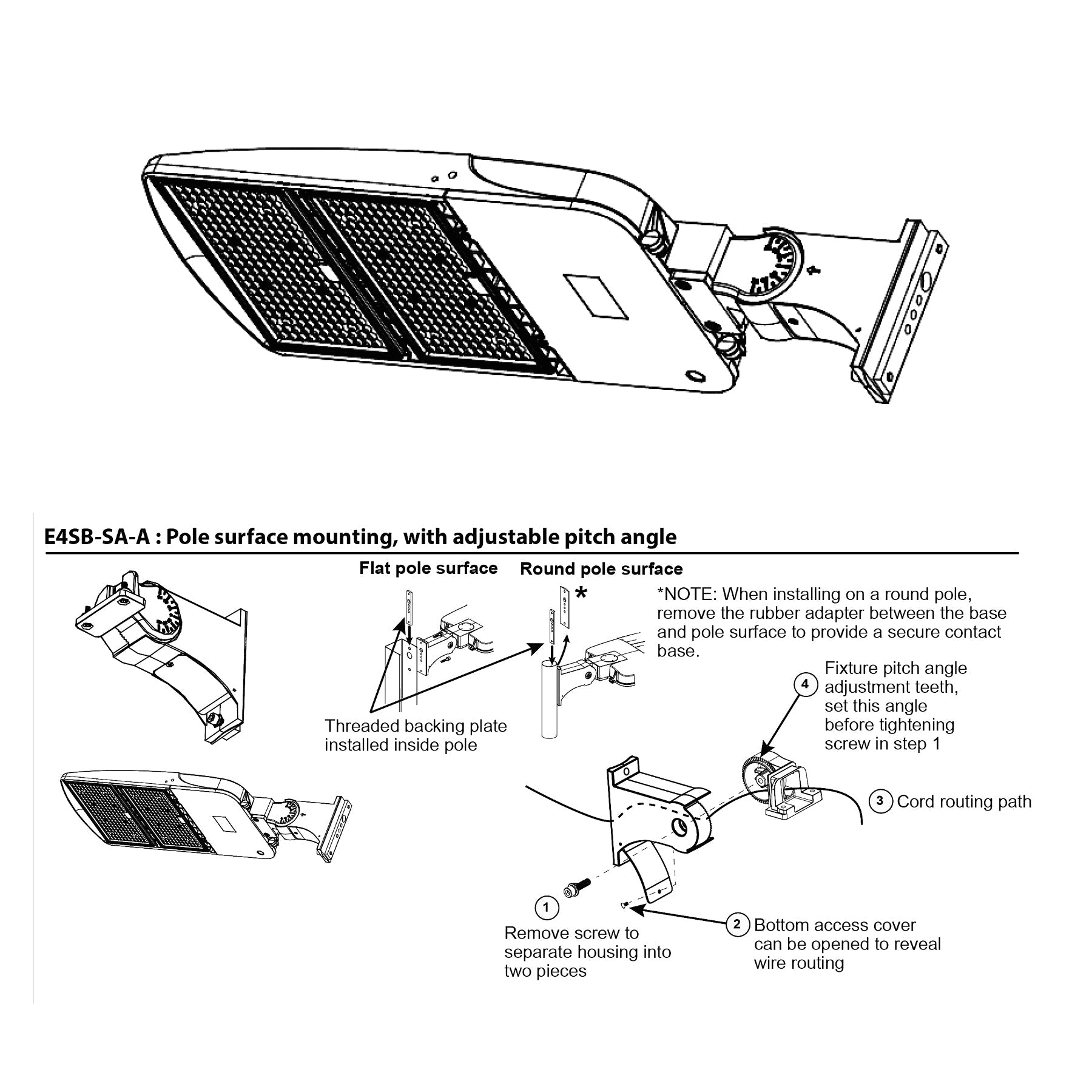

E4SB series area light from Energetic is engineered to respect the classic look of a shoebox area light, while the slim tapered, self-cleaning profile suggests exceptional performance. Incorporating the latest in LED, driver technology, and thermal management with a tested efficacy up to 141 LM/W across the family wattages from 100W through 300W. This performance and design makes the E4SB series ideal for replacing legacy fixtures from 250W to 1000W MH. Options include multiple mounting configurations and NEMA PC receptacle. Other key features include: Bottom side access door, large area heat sinking above arrays, single panel optics, standard SPD of 10 KA/KV, and low EPA ratings. With optional slip fitters, trunnion, fixed arm, and yoke mounts available for separate purchase, see mounting options below for more information. E4SB can also be used for up-lighting as well as wall washing.
Features:
- Full cutoff light profile
- Ground facing access door
- Isolated driver and LED array for better thermal management
- Suitable for wet location use
- 2 Different Mounting Options available to suit application challenges
- Dimmable with 1-10V system
- Integrated 10 KA/KV SPD surge protection
- Type III-M and V Lens Options are available
Applications:
- Parking Lots
- General Area Lighting
- Security Lighting
- Wall Wash
- Landscaping
Specifications:
- Model Number: E4SBH100D3C-850
- Configuration:
- Body Color/Finish: Bronze
- Beam Angle: 165°×70°
- Lumens(lm): 14000
- Luminous Efficacy: 140
- Input Power: 100
- Input Voltage: 277-480V
- Power Factor: 0.9
- THD: <20%
- Color Temp: 5000K
- Color Rend (CRI):
- Ra84
- Lifetime Rating: >50,000 hours
- Warranty: 5yr Limited
- Dimmability: 0-10v
- Operating Temp: -40°F to 113°F
- Environment: Damp
- Safety Listing: UL, T24
- Performance Listing: DLC 5.1 P
- Weight: 4.9
- Dimensions: 13.14 x 12.4 x 2.42
