Product Overview

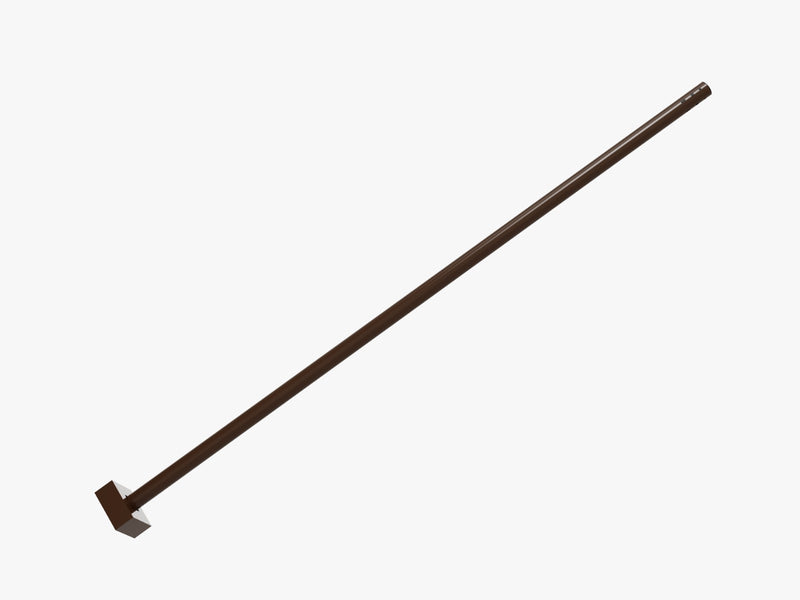

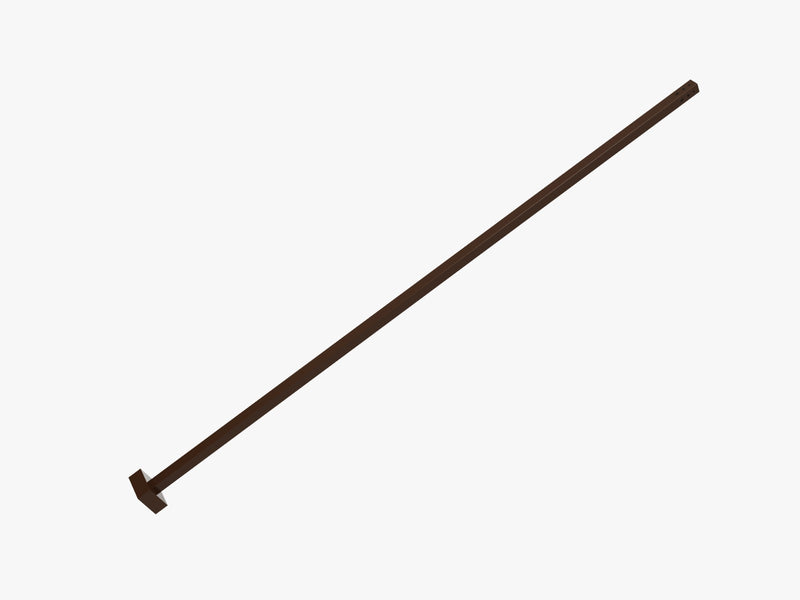

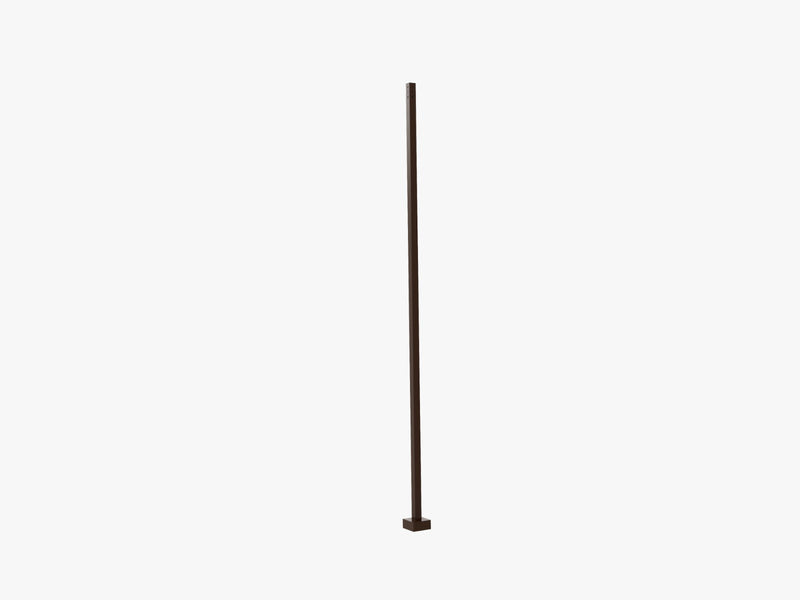

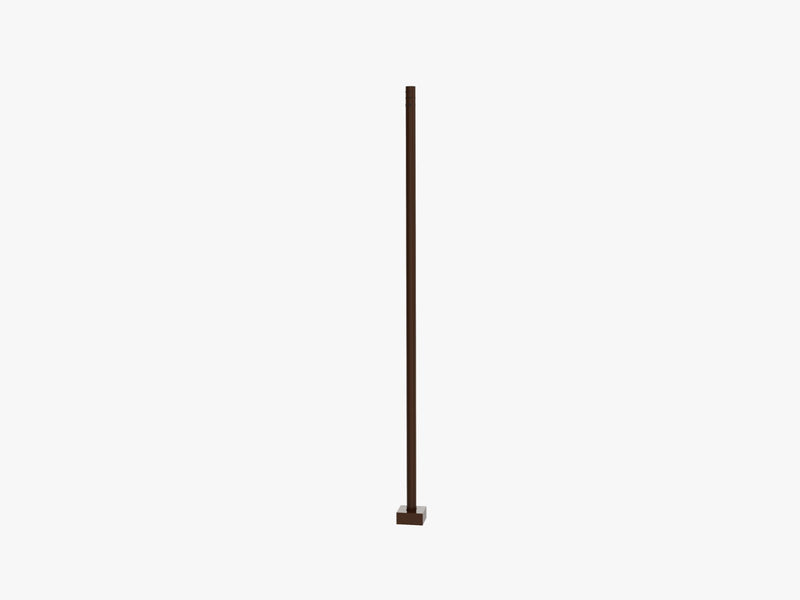

The Steel Tech Lights 30FT × 5-Inch Square Steel Light Pole is a heavy-duty commercial and industrial outdoor lighting pole designed for large parking lots, distribution centers, industrial facilities, commercial campuses, municipal properties, dealerships, and other applications requiring elevated area lighting.
Constructed from high-strength steel tubing, this straight square pole conforms to ASTM A500 Grade B specifications with a minimum yield strength of 46,000 PSI. Unlike the 20FT and 25FT models, the 30FT pole uses a larger 5-inch square profile with 10-gauge steel construction.
For exterior durability, the pole receives hot-dip galvanizing along with a textured architectural bronze powder-coat finish.
The pole includes anchor bolts, a formed steel base cover, and a reinforced hand hole with cover and ground screw. Standard poles are predrilled on four sides and supplied with a polycarbonate top cover and plugs for unused mounting locations.
Features
- 30FT straight square steel light pole
- Heavy-duty 5-inch square profile
- 10-gauge steel construction
- ASTM A500 Grade B
- 46,000 PSI minimum yield strength
- Hot-dip galvanized
- Textured architectural bronze powder-coat finish
- Anchor bolts included
- Base cover included
- Reinforced hand hole and cover with ground screw
- Predrilled mounting holes on four sides
- Polycarbonate top cover
- Plugs for unused mounting locations
- Designed for large commercial and industrial area-lighting installations
- 1-Year Limited Warranty
Construction & Dimensions
-
Height: 30FT
-
Shape: Straight Square
-
Pole Size: 5 Inches
-
Steel Gauge: 10
-
Steel Standard: ASTM A500 Grade B
-
Minimum Yield Strength: 46,000 PSI
-
Pole Weight: Approximately 286 lb
-
Base: 11 Inches
-
Bolt Circle: 185 × 185 mm (7.28" × 7.28")
-
Anchor Bolt Size: M25 × 1016 × 100 mm
-
Anchor Bolts: Included
-
Base Cover: Included
-
Hand Hole: Reinforced hand hole and cover with ground screw
-
Mounting Holes: Predrilled on four sides
EPA / Wind Loading
According to the manufacturer's EPA chart, the 30FT square pole has maximum EPA ratings of 9.6 sq. ft. at 70 MPH, 7.4 at 80 MPH, 6.9 at 90 MPH, 4.3 at 100 MPH, 3.5 at 110 MPH, and 2.2 at 120 MPH. The manufacturer's documentation also illustrates Single, D90, D180, T90 and Q90 fixture configurations. The complete lighting configuration must remain within the applicable EPA and wind-loading requirements.
Applications
- Large parking lots
- Distribution centers
- Warehouses
- Manufacturing facilities
- Industrial properties
- Commercial campuses
- Shopping centers
- Car dealerships
- Schools and universities
- Municipal properties
- Large outdoor storage areas
- Building and property perimeters
- High-output area lighting
- Security lighting
Installation Information
The manufacturer's installation diagram provides a foundation reference of approximately 27.56" × 27.56" × 47.24" for the 30FT pole. This is manufacturer reference information only and should not be treated as a universal foundation requirement.
Final foundation design must account for soil conditions, fixture configuration and EPA, local wind conditions, applicable building codes, and project-specific engineering requirements.
Additional mounting hardware or adapters may be required for certain arm or slip-fitter fixture configurations.
Specifications
-
Product Type: Commercial Steel Light Pole
-
Height: 30FT
-
Shape: Square
-
Nominal Size: 5"
-
Gauge: 10
-
Steel Specification: ASTM A500 Grade B
-
Minimum Yield Strength: 46,000 PSI
-
Surface Treatment: Hot-Dip Galvanized
-
Finish: Textured Architectural Bronze Powder Coat
-
Weight: Approximately 286 lb
-
Base: 11"
-
Bolt Circle: 185 × 185 mm (7.28" × 7.28")
-
Anchor Bolt Specification: M25 × 1016 × 100 mm
-
Anchor Bolts Included: Yes
-
Base Cover: Included
-
Hand Hole: Reinforced with cover and ground screw
-
Mounting Holes: Predrilled on four sides
-
Warranty: 1-Year Limited Warranty
Important Pole & Fixture Compatibility Notice
Pole suitability depends on the EPA and weight of the installed fixtures, fixture quantity and configuration, mounting hardware, wind speed, local conditions, foundation design, and applicable codes. The complete pole-and-fixture configuration should be verified for the specific project before installation.
