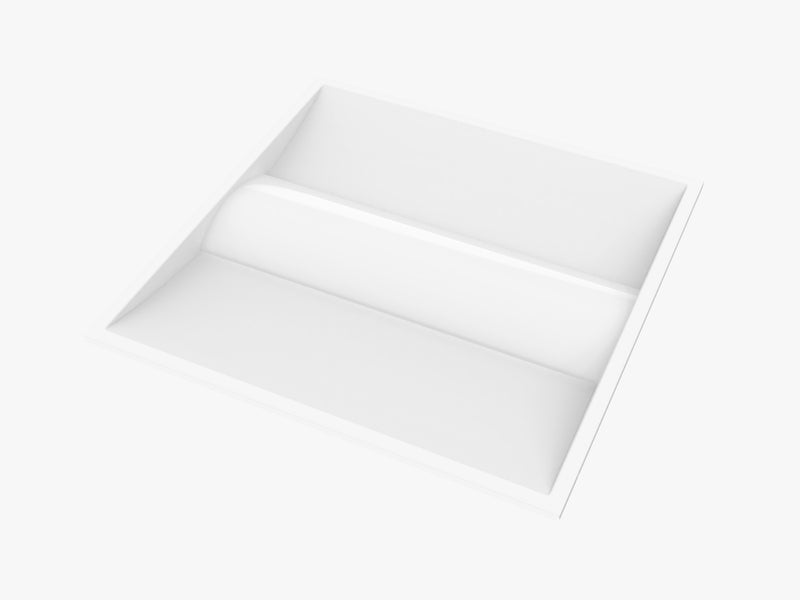

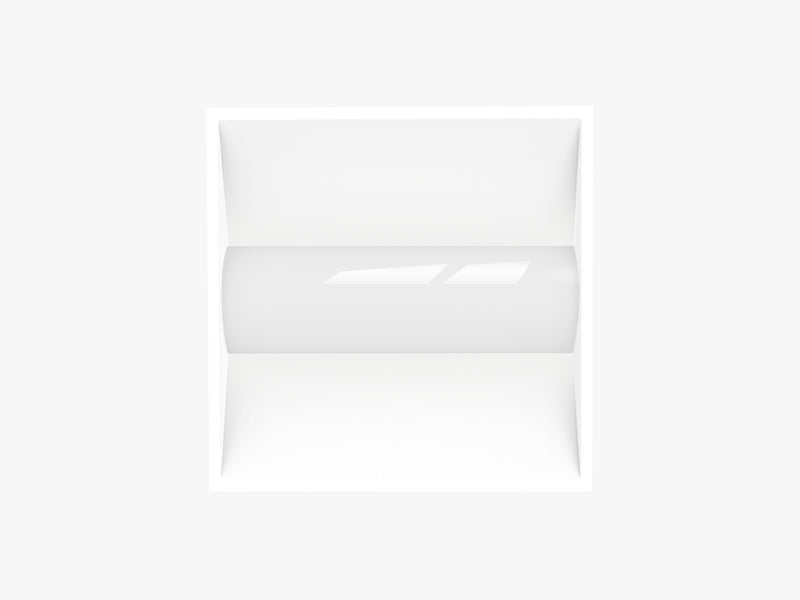

Steel Tech Lights 1x4 LED Troffer Light – 25W/30W/40W Selectable – Up to 6,179 Lumens – 3CCT – 120-277V – 0-10V Dimmable

Product Overview

The Steel Tech Lights 1x4 LED Troffer Light is a high-efficiency commercial ceiling fixture designed for offices, schools, healthcare facilities, retail spaces, hallways, conference rooms, and other commercial interiors.

Featuring three selectable wattage settings of 25W, 30W, and 40W, the fixture allows installers to adjust power consumption and light output to suit different applications from a single fixture.

At maximum output, the troffer produces up to 6,179 lumens, delivering bright, uniform illumination while operating at only 40 watts.

Three selectable color temperatures — 3500K, 4000K, and 5000K — provide additional flexibility for different commercial environments.

Designed for 120-277V electrical systems, the fixture includes 0-10V dimming for compatible lighting controls.

Features

• 1x4 commercial LED troffer
• Three selectable wattages: 25W / 30W / 40W
• Produces up to 6,179 lumens
• Three selectable color temperatures: 3500K / 4000K / 5000K
• 120-277V universal voltage
• 0-10V dimmable
• High-efficiency integrated LED lighting
• Selectable wattage and CCT
• Designed for recessed commercial ceiling applications
• Bright, uniform light distribution
• Suitable for new construction, renovations, and lighting upgrades

Benefits

• One fixture provides three selectable wattage options
• Adjustable output allows lighting levels and energy consumption to be matched to the application
• Three selectable CCT settings reduce the need to stock multiple color-temperature versions
• Produces up to 6,179 lumens
• Helps reduce energy consumption compared with traditional fluorescent troffers
• 0-10V dimming provides additional control over light output
• Versatile for a wide range of commercial and institutional spaces
• Simplifies inventory by combining multiple configurations into one fixture

Construction Features

• Commercial-grade 1x4 troffer construction
• Integrated LED light source
• Designed for recessed ceiling installation
• Selectable wattage control
• Selectable CCT control
• Integrated 0-10V dimming
• Designed for 120-277V electrical systems
• Built for long-term commercial operation

Applications

• Offices
• Conference rooms
• Schools
• Classrooms
• Healthcare facilities
• Retail stores
• Commercial buildings
• Hallways
• Administrative spaces
• Libraries
• Hotels
• Institutional facilities
• General commercial interiors

Specifications

• Fixture Type: LED Troffer Light
• Fixture Size: 1x4
• Selectable Wattage: 25W / 30W / 40W
• Maximum Light Output: 6,179 Lumens
• Selectable CCT: 3500K / 4000K / 5000K
• Input Voltage: AC120-277V
• Dimming: 0-10V
• DLC ID: S-6K2D0Q
• Installation: Recessed Ceiling / Grid Ceiling
• Warranty: 5-Year Limited Warranty
