Product Overview

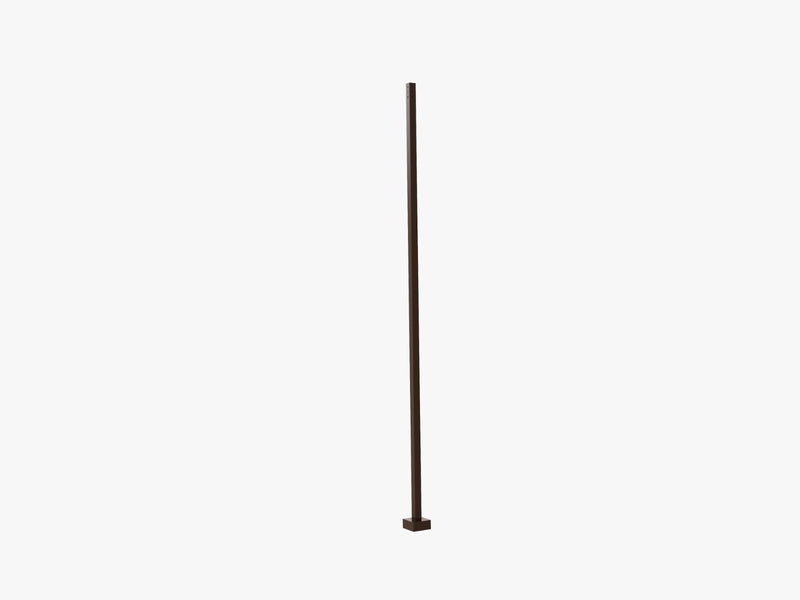

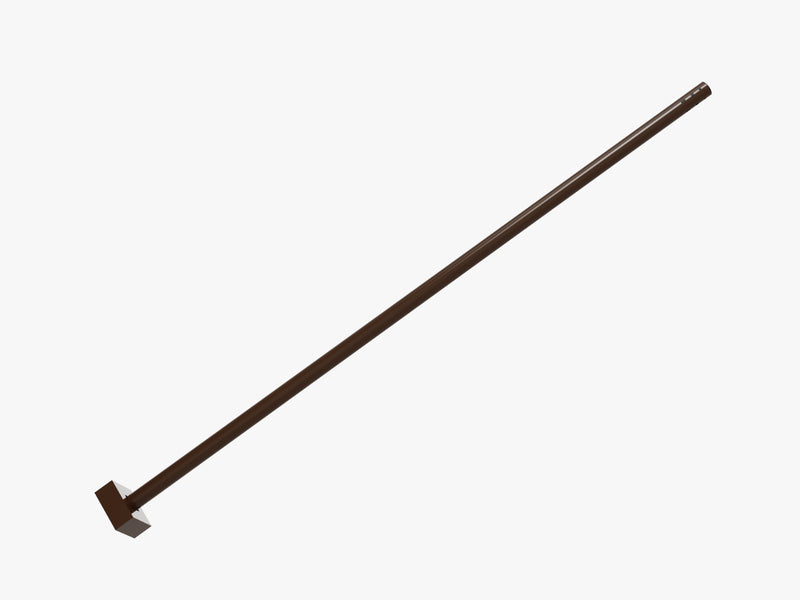

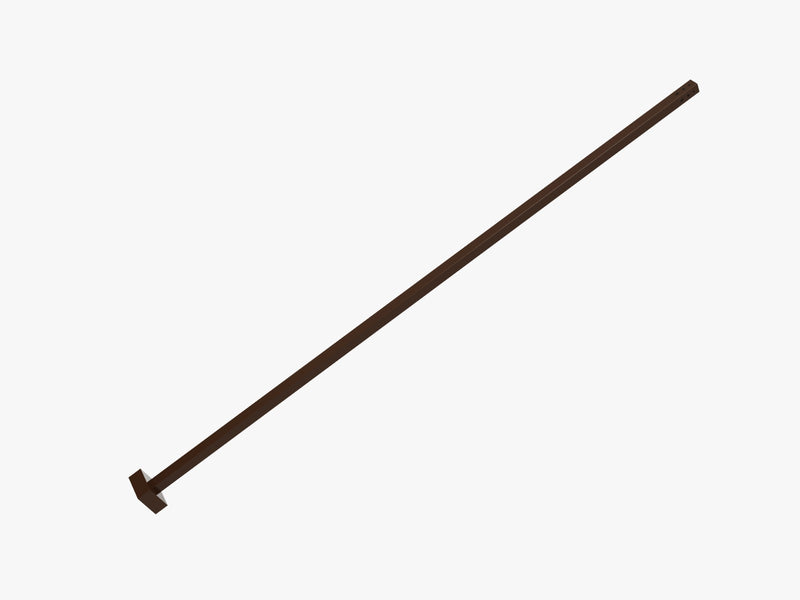

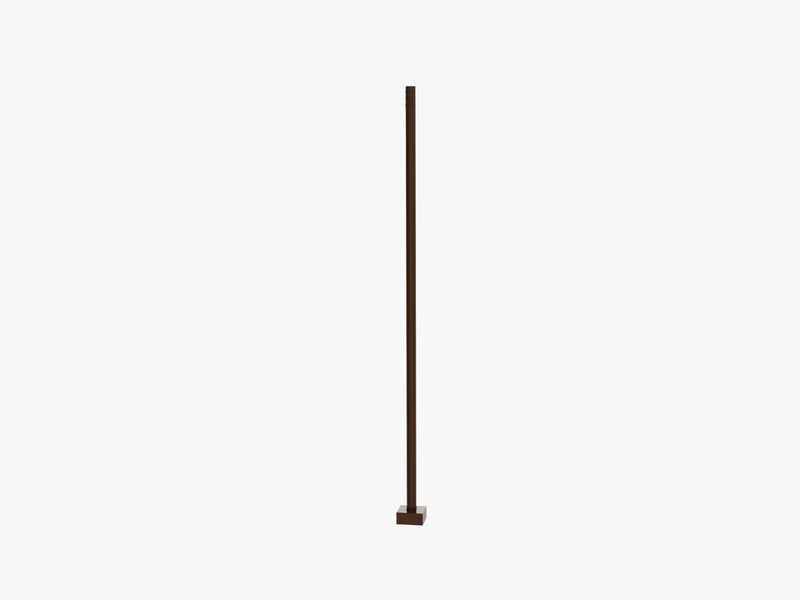

The Steel Tech Lights 20FT × 4-Inch Square Steel Light Pole is a commercial-grade outdoor lighting pole designed for parking lots, retail centers, industrial properties, schools, campuses, office buildings, public areas, and other exterior area-lighting applications.
Constructed from high-strength steel tubing, this straight square pole conforms to ASTM A500 Grade B specifications with a minimum yield strength of 46,000 PSI. The 20FT model features 11-gauge steel construction with a 4-inch square profile.
For exterior durability, the pole receives hot-dip galvanizing and a textured architectural bronze powder-coat finish.
The pole includes anchor bolts, a two-piece formed steel base cover, and a reinforced hand hole and cover with ground screw. Standard poles are predrilled on four sides and include a polycarbonate top cover and plugs for unused mounting locations.
Features
- 20FT straight square steel light pole
- 4-inch square profile
- 11-gauge steel construction
- ASTM A500 Grade B
- 46,000 PSI minimum yield strength
- Hot-dip galvanized
- Textured architectural bronze powder-coat finish
- Anchor bolts included
- Base cover included
- Reinforced hand hole and cover with ground screw
- Predrilled mounting holes on four sides
- Polycarbonate top cover
- Hole plugs for unused mounting locations
- Designed for commercial outdoor area lighting
- 1-Year Limited Warranty
Construction & Dimensions
-
Height: 20FT
-
Shape: Straight Square
-
Pole Size: 4 Inches
-
Gauge: 11
-
Steel Standard: ASTM A500 Grade B
-
Minimum Yield Strength: 46,000 PSI
-
Weight: Approximately 169 lb
-
Base: 11 Inches
-
Bolt Circle: 185 × 185 mm (7.28" × 7.28")
-
Anchor Bolt Size: M20 × 842 × 100 mm
-
Anchor Bolts: Included
-
Base Cover: Included
-
Hand Hole: Reinforced hand hole and cover with ground screw
-
Mounting Holes: Predrilled on four sides
EPA / Wind Loading
The manufacturer's EPA chart lists maximum EPA values for the 20FT square pole of 10.2 sq. ft. at 70 MPH, 9.3 at 80 MPH, 7.5 at 90 MPH, 6.2 at 100 MPH, 4.2 at 110 MPH, and 3.6 at 120 MPH. The manufacturer's documentation illustrates Single, D90, D180, T90 and Q90 fixture configurations. Fixture quantity, configuration and mounting hardware must remain within the applicable EPA requirements.
Applications
- Parking lots
- Shopping centers
- Retail properties
- Warehouses
- Distribution centers
- Industrial facilities
- Schools and universities
- Commercial campuses
- Office buildings
- Municipal properties
- Building perimeters
- Area lighting
- Security lighting
Installation Information
The manufacturer's documentation provides foundation-reference information for the 20–25FT pole family. These dimensions are reference information only and are not a universal foundation specification.
Final foundation design must account for soil conditions, local wind conditions, fixture EPA and configuration, applicable codes, and project-specific engineering requirements.
Additional mounting components may be required for certain arm or slip-fitter configurations.
Specifications
-
Product Type: Commercial Steel Light Pole
-
Height: 20FT
-
Shape: Square
-
Nominal Size: 4"
-
Gauge: 11
-
Steel Specification: ASTM A500 Grade B
-
Minimum Yield Strength: 46,000 PSI
-
Surface Treatment: Hot-Dip Galvanized
-
Finish: Textured Architectural Bronze Powder Coat
-
Weight: Approximately 169 lb
-
Base: 11"
-
Bolt Circle: 185 × 185 mm (7.28" × 7.28")
-
Anchor Bolt Specification: M20 × 842 × 100 mm
-
Anchor Bolts Included: Yes
-
Base Cover: Included
-
Hand Hole: Reinforced with cover and ground screw
-
Mounting Holes: Predrilled on four sides
-
Warranty: 1-Year Limited Warranty
Important Pole & Fixture Compatibility Notice
Pole suitability depends on the EPA and weight of the installed fixtures, fixture quantity and mounting configuration, mounting hardware, wind speed, local conditions, foundation design, and applicable codes. The complete pole-and-fixture configuration should be verified for the specific project before installation.
