Product Overview

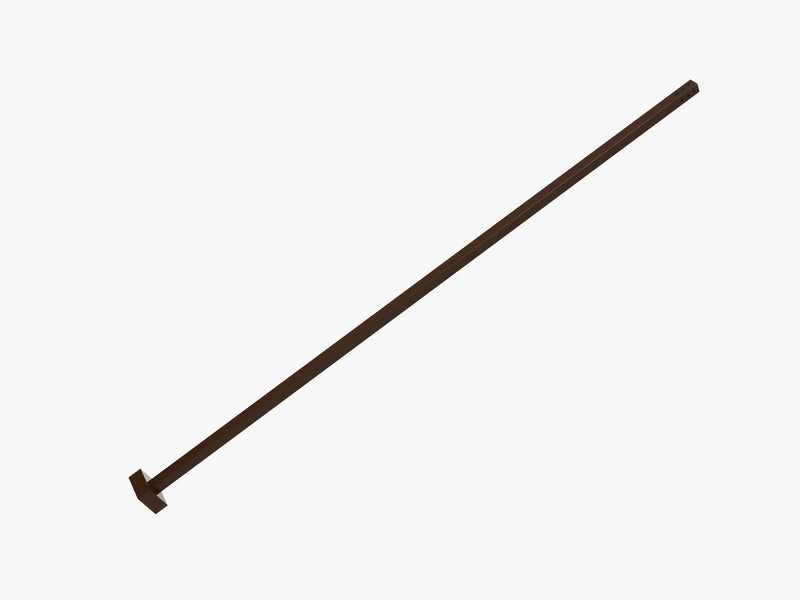

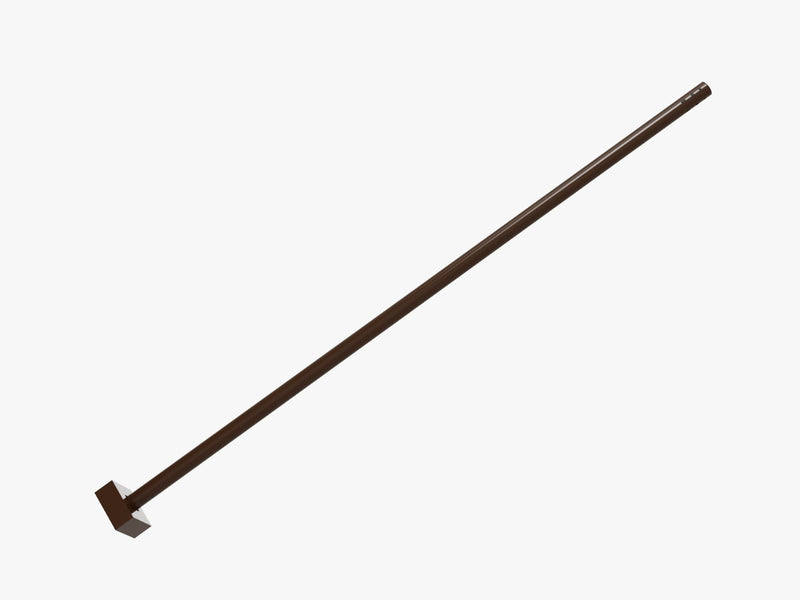

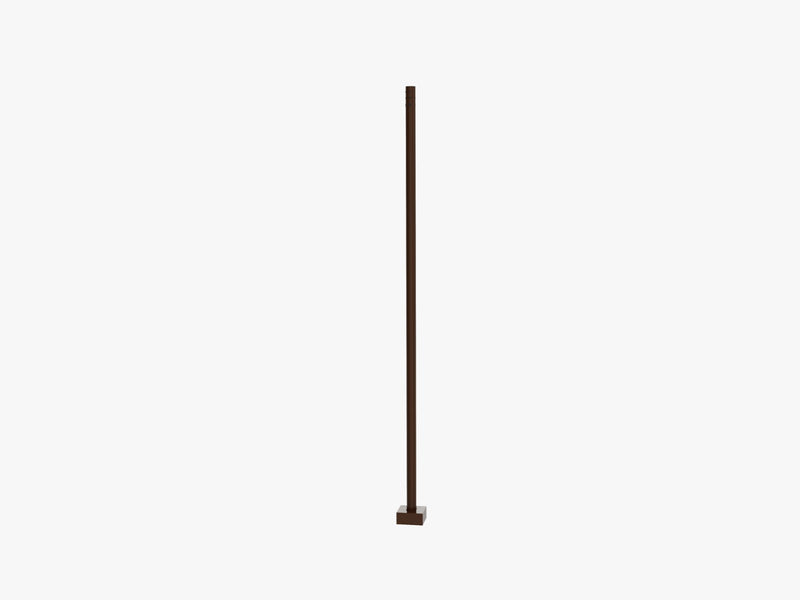

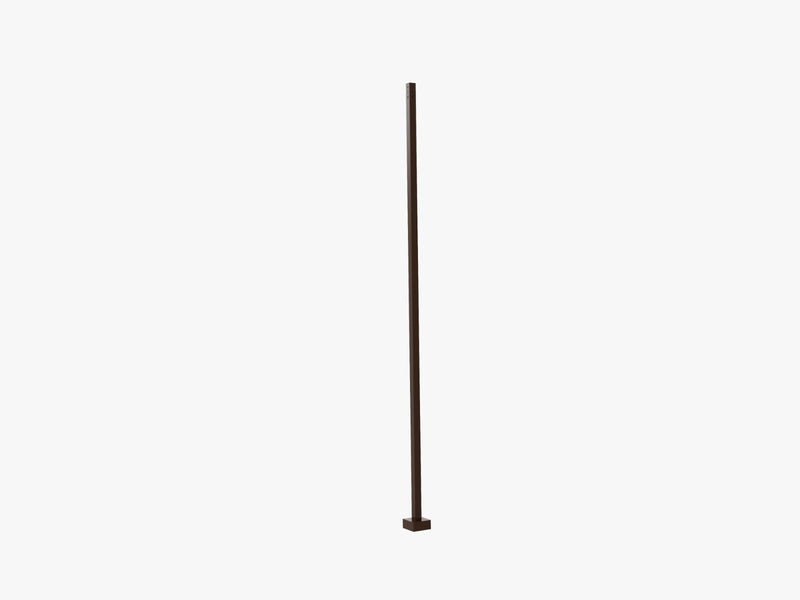

The Steel Tech Lights 15FT x 4-Inch Round Steel Light Pole is a commercial-grade outdoor lighting pole designed for parking lots, retail centers, industrial properties, schools, campuses, public areas, office buildings, and other exterior area-lighting applications.
Constructed from high-strength steel tubing, this straight round pole conforms to ASTM A500 Grade B specifications with a minimum yield strength of 46,000 PSI. The 15FT pole uses 11-gauge steel with a nominal 4-inch round profile.
For exterior durability, the pole receives hot-dip galvanizing plus a textured architectural bronze powder-coat finish. The pole is designed for anchor-base installation and includes a two-piece formed steel base cover.
Standard poles are predrilled on four sides for side-mounted fixture configurations and include a polycarbonate top cover and plugs for unused mounting locations. A cast-iron reinforced hand hole and cover with ground screw provide access for electrical installation and servicing.
Features
- 15FT straight round steel light pole
- 4-inch nominal diameter
- 11-gauge steel construction
- Conforms to ASTM A500 Grade B
- 46,000 PSI minimum yield strength
-
Hot-dip galvanized surface treatment
- Textured architectural bronze powder-coat finish
- Predrilled mounting holes on four sides
- Polycarbonate top cover
- Hole plugs for unused predrilled mounting locations
- Cast-iron reinforced hand hole and cover with ground screw
- Two-piece formed steel base cover
- Designed for commercial outdoor area-lighting applications
- 1-Year Limited Warranty
Construction & Mounting
-
Pole Height: 15FT
-
Pole Shape: Straight Round
-
Pole Size: 4-Inch Diameter
-
Gauge: 11 Gauge
-
Material Standard: ASTM A500 Grade B
-
Minimum Yield Strength: 46,000 PSI
-
Pole Weight: Approximately 121 lb
-
Base: 11-Inch
-
Bolt Circle: 185 x 185 mm (7.28 x 7.28 in.)
-
Specified Anchor Bolt Size: M20 x 508 x 100 mm (approximately 0.79 x 20 x 3.94 in.)
-
Anchor Bolts: Not included
-
Base Cover: Included
-
Hand Hole: Reinforced hand hole and cover with ground screw
-
Fixture Mounting: Four-side predrilled configuration
Applications
- Parking lots
- Retail centers
- Commercial properties
- Industrial parks
- Schools and universities
- Office buildings
- Public areas
- Building perimeters
- Walkways and entrances
- Area and security lighting
EPA / Wind Loading
The manufacturer provides EPA ratings for the 15FT round pole of 15.2 sq. ft. at 70 mph, 13.5 at 80 mph, 11.1 at 90 mph, 9.5 at 100 mph, 7.9 at 110 mph, and 6.8 at 120 mph. Fixture selection must account for total effective projected area, fixture quantity/configuration, mounting hardware, and local wind conditions.
Installation Information
The manufacturer's foundation reference for 10FT-15FT poles is approximately 19.69 in. x 19.69 in. x 23.62 in. This is a manufacturer reference only. Final foundation design must be determined for the actual installation based on soil conditions, wind loading, fixture configuration, local building codes, and applicable engineering requirements.
Additional mounting hardware or adapters may be required when using arm or slip-fitter mounting configurations.
Specifications
-
Product Type: Commercial Steel Light Pole
-
Height: 15FT
-
Shape: Round
-
Nominal Diameter: 4 Inches
-
Gauge: 11
-
Steel Specification: ASTM A500 Grade B
-
Minimum Yield Strength: 46,000 PSI
-
Surface Treatment: Hot-Dip Galvanized
-
Finish: Textured Architectural Bronze Powder Coat
-
Weight: Approximately 121 lb
-
Base: 11 Inches
-
Bolt Circle: 185 x 185 mm (7.28 x 7.28 in.)
-
Anchor Bolt Specification: M20 x 508 x 100 mm
-
Anchor Bolts Included: No
-
Base Cover: Included
-
Hand Hole: Reinforced with cover and ground screw
-
Mounting Holes: Predrilled on four sides
-
Warranty: 1-Year Limited Warranty
Important Pole & Fixture Compatibility Notice
Light-pole suitability depends on fixture EPA, fixture weight, mounting configuration, wind speed, local conditions, foundation design, and applicable codes. Verify the complete pole-and-fixture combination for the project before installation. Installation should be performed by qualified professionals.
