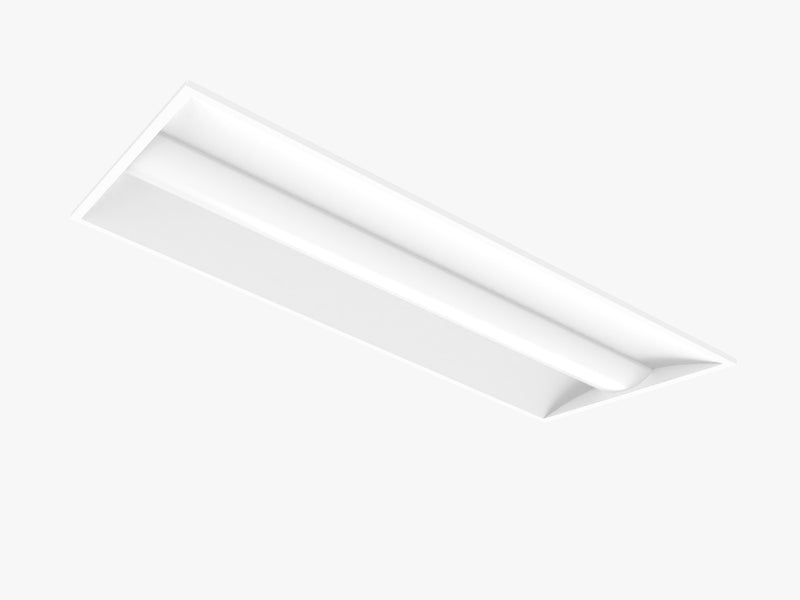

Steel Tech Lights 2x4 LED Troffer Light with Frosted Cover – 15W/25W/50W Selectable – Up to 7,500 Lumens – 3000K/4000K/5000K – 120-277V – 0-10V Dimmable

Product Overview

The Steel Tech Lights 2x4 LED Troffer Light with Frosted Cover is a high-efficiency commercial ceiling fixture designed for offices, schools, healthcare facilities, retail spaces, conference rooms, and other commercial and institutional interiors.

Featuring three field-selectable wattage settings of 15W, 25W, and 50W, the fixture allows installers to adjust power consumption and light output based on the requirements of the application.

With an efficacy of up to 150 lumens per watt, the fixture can produce up to approximately 7,500 lumens at the maximum 50W setting.

Three selectable color temperatures — 3000K, 4000K, and 5000K — provide additional flexibility, allowing the desired light appearance to be selected during installation.

The frosted cover helps provide smooth, diffused illumination for commercial interior environments. Designed for 120-277V electrical systems, the fixture also supports 0-10V dimming for compatible commercial lighting controls.

Features

• 2x4 LED troffer light
• Frosted cover
• Selectable 15W / 25W / 50W
• Up to approximately 7,500 lumens
• High efficacy of up to 150 lm/W
• Selectable 3000K / 4000K / 5000K
• 120-277V universal voltage
• 0-10V dimmable
• Field-selectable wattage
• Field-selectable color temperature
• Integrated LED light source
• Designed for recessed commercial ceiling applications
• Diffused commercial illumination

Benefits

• Three selectable wattages allow light output and energy consumption to be adjusted for the application
• Up to approximately 7,500 lumens at maximum output
• High-efficiency performance of up to 150 lumens per watt
• Three selectable color temperatures provide warm, neutral, and daylight-white lighting options
• Frosted cover helps diffuse the light for smooth, comfortable illumination
• 0-10V dimming provides additional control over light levels
• One fixture can replace multiple fixed-wattage and fixed-CCT configurations
• Suitable for new construction, renovations, and commercial LED lighting upgrades

Construction Features

• Commercial-grade 2x4 troffer construction
• Frosted cover
• Integrated LED light source
• Selectable wattage controls
• Selectable CCT controls
• Integrated 0-10V dimming
• Designed for 120-277V electrical systems
• Designed for recessed grid-ceiling installation
• Built for commercial and institutional applications

Applications

• Offices
• Conference rooms
• Schools
• Classrooms
• Healthcare facilities
• Retail stores
• Commercial buildings
• Administrative spaces
• Libraries
• Hotels
• Institutional facilities
• General commercial interiors

Specifications

• Fixture Type: LED Troffer Light
• Fixture Size: 2x4
• Cover: Frosted
• Selectable Wattage: 15W / 25W / 50W
• Maximum Light Output: Approximately 7,500 Lumens
• Maximum Efficacy: 150 lm/W
• Selectable CCT: 3000K / 4000K / 5000K
• Input Voltage: AC120-277V
• Dimming: 0-10V
• Installation: Recessed Ceiling / Grid Ceiling
• Warranty: 5-Year Limited Warranty
