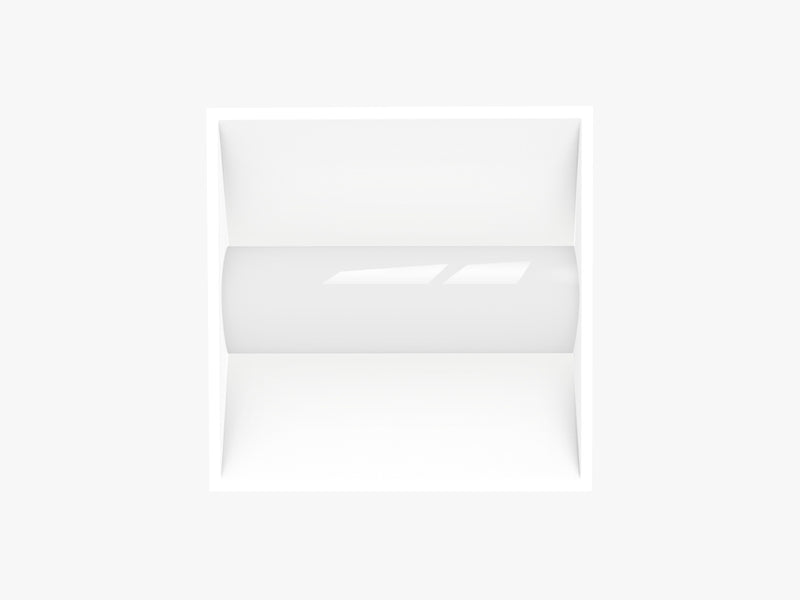

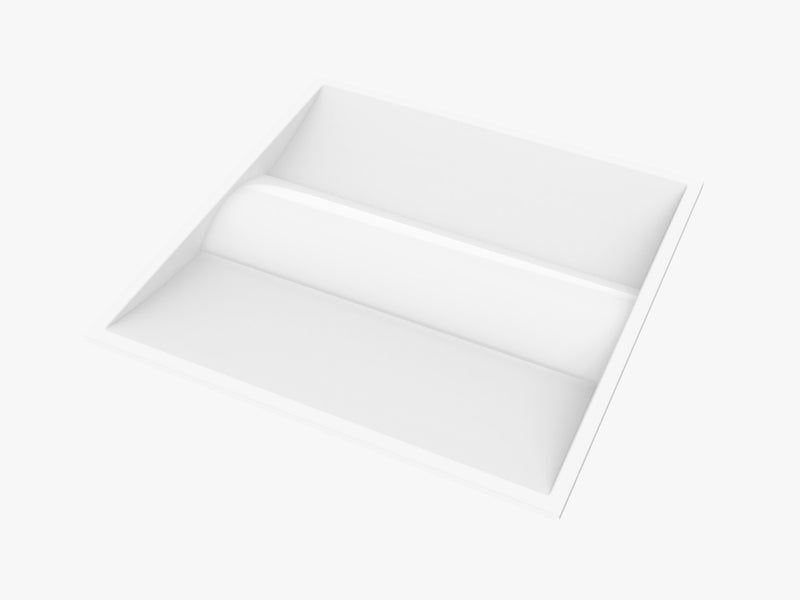

Steel Tech Lights 2x2 LED Troffer Light with Sensor Base – 15W/20W/25W/30W/40W Selectable – Up to 6,142 Lumens – 5CCT – 120-277V – 0-10V Dimmable

Product Overview

The Steel Tech Lights 2x2 LED Troffer Light with Sensor Base is a versatile, high-efficiency commercial ceiling fixture designed for offices, schools, healthcare facilities, retail spaces, conference rooms, and other commercial interiors.

Featuring five selectable wattage settings of 15W, 20W, 25W, 30W, and 40W, this fixture allows installers to adjust power consumption and light output for different applications from a single fixture.

At maximum output, the troffer produces up to 6,142 lumens, providing bright and uniform commercial illumination.

Five selectable color temperatures — 3500K, 4000K, 5000K, 5700K, and 6500K — provide additional flexibility for different environments and lighting requirements.

This configuration is equipped with a sensor base, allowing a compatible sensor to be added for automated lighting-control applications.

Designed for AC120-277V commercial electrical systems, the fixture also includes 0-10V dimming.

Features

• 2x2 commercial LED troffer
• Sensor base included
• Five selectable wattages: 15W / 20W / 25W / 30W / 40W
• Produces up to 6,142 lumens
• Five selectable color temperatures: 3500K / 4000K / 5000K / 5700K / 6500K
• AC120-277V
• 0-10V dimmable
• High-efficiency integrated LED lighting
• Selectable wattage and CCT
• Sensor-ready configuration
• Designed for recessed commercial ceiling applications
• Bright, uniform light distribution

Benefits

• Sensor-base configuration allows compatible sensor controls to be added
• Five selectable wattages allow output to be matched to different applications
• Five selectable CCT settings provide multiple lighting appearances from one fixture
• Produces up to 6,142 lumens
• 0-10V dimming provides additional lighting control
• Reduces the need to stock multiple fixed-wattage and fixed-CCT fixtures
• Suitable for commercial lighting upgrades and new installations

Applications

• Offices
• Conference rooms
• Schools
• Classrooms
• Healthcare facilities
• Retail stores
• Commercial buildings
• Administrative spaces
• Libraries
• Institutional facilities
• General commercial interiors

Specifications

• Fixture Type: LED Troffer Light with Sensor Base
• Fixture Size: 2x2
• Selectable Wattage: 15W / 20W / 25W / 30W / 40W
• Maximum Light Output: 6,142 Lumens
• Selectable CCT: 3500K / 4000K / 5000K / 5700K / 6500K
• Input Voltage: AC120-277V
• Dimming: 0-10V
• Sensor Base: Included
• DLC ID: S-07WVX9
• Supplier Product ID: F-0078
• Supplier Model: SS-TRF22-TCP40W-CCT
• Installation: Recessed Ceiling / Grid Ceiling
• Warranty: 5-Year Limited Warranty
