Steel Tech Lights 2FT LED Linear High Bay Light – 80W/110W/165W Selectable – Up to 25,082 Lumens – 3500K/4000K/5000K – 277-480V – 0-10V Dimmable

Product Overview

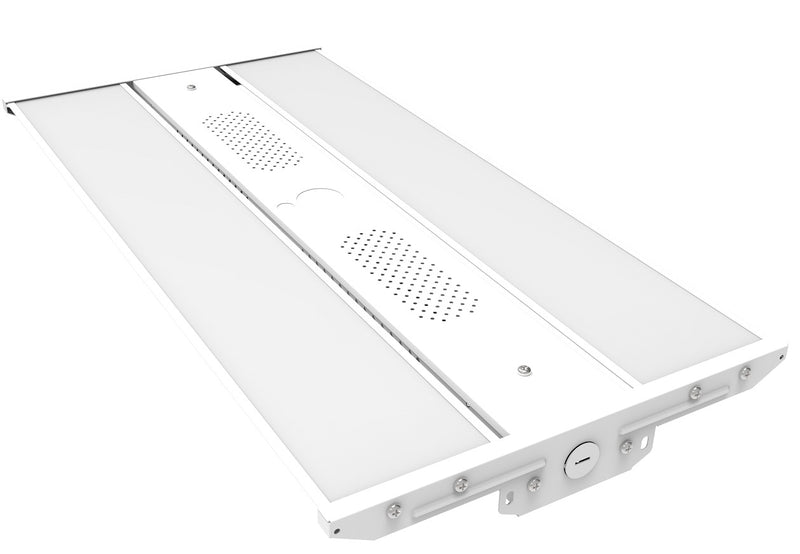

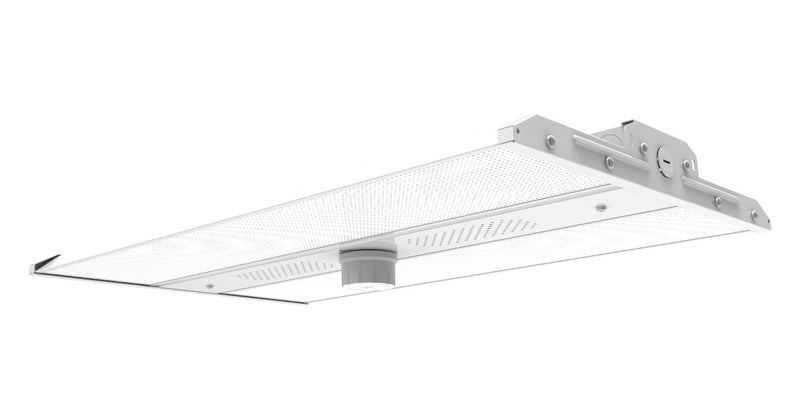

The Steel Tech Lights 2FT 165W High-Voltage LED Linear High Bay Light is a versatile, high-output commercial and industrial lighting solution designed specifically for 277-480V electrical systems.

With field-selectable wattage settings of 80W, 110W, and 165W, this fixture allows contractors and facility managers to adjust light output and energy consumption to match the application. At its maximum 165W setting, the fixture delivers up to 25,082 lumens of bright, efficient illumination.

Selectable 3500K, 4000K, and 5000K color temperatures provide additional flexibility, allowing one fixture to accommodate different environments and lighting preferences.

The fixture includes 0-10V dimming and is ideal for warehouses, manufacturing facilities, distribution centers, workshops, commercial buildings, gymnasiums, and other high-ceiling applications operating on high-voltage electrical systems.

Features

• Selectable 80W / 110W / 165W wattage
• Up to 25,082 lumens
• Selectable 3500K / 4000K / 5000K color temperature
• Designed for AC277-480V electrical systems
• 0-10V dimmable
• High-efficiency integrated LED design
• Multiple output levels from a single fixture
• Commercial and industrial-grade construction
• Long-life LED technology
• 5-year limited warranty

Benefits

• One fixture replaces multiple fixed-wattage models
• High-voltage design eliminates the need for a separate step-down transformer in compatible 277-480V applications
• Selectable CCT allows lighting appearance to be adjusted on site
• Up to 25,082 lumens provides powerful illumination for high-ceiling spaces
• 0-10V dimming provides additional lighting and energy control
• Helps reduce SKU requirements for contractors and facility managers
• Designed for commercial and industrial installations

Construction Features

• Durable linear high-bay housing
• Integrated LED light source
• Designed for demanding commercial and industrial environments
• High-voltage LED driver
• 0-10V dimming capability
• Designed for suspended high-bay installation

Applications

• Warehouses
• Manufacturing facilities
• Distribution centers
• Factories
• Workshops
• Commercial buildings
• Gymnasiums
• Storage facilities
• Industrial facilities
• High-ceiling work areas

Specifications

• Maximum Wattage: 165W
• Selectable Wattage: 80W / 110W / 165W
• Maximum Light Output: 25,082 lumens
• Selectable CCT: 3500K / 4000K / 5000K
• Input Voltage: AC277-480V
• Dimming: 0-10V
• Fixture Type: LED Linear High Bay
• Nominal Length: 2FT
• Warranty: 5-Year Limited Warranty
• Certifications: UL/ETL Listed, DLC Listed
