Product Overview

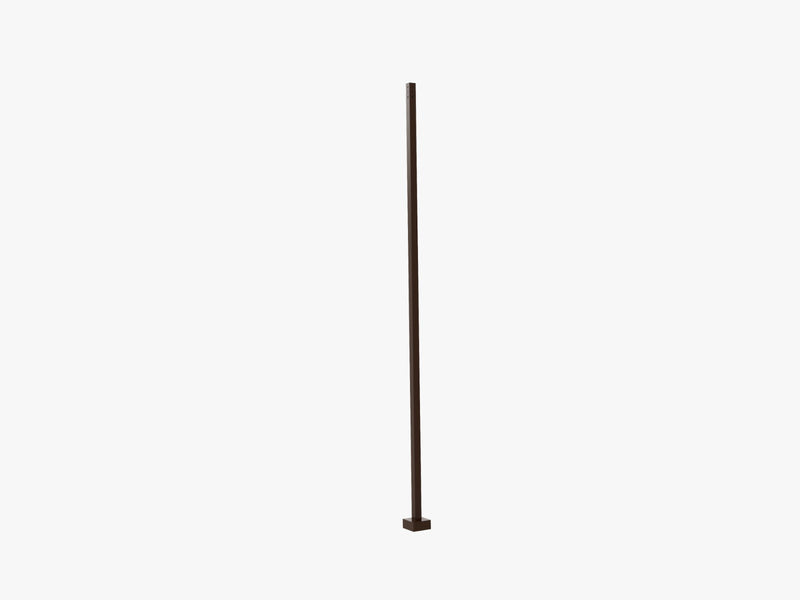

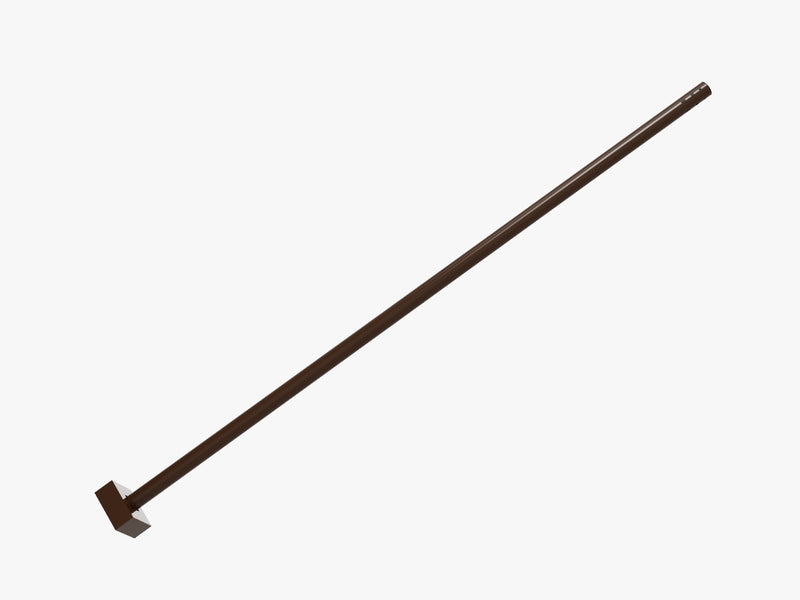

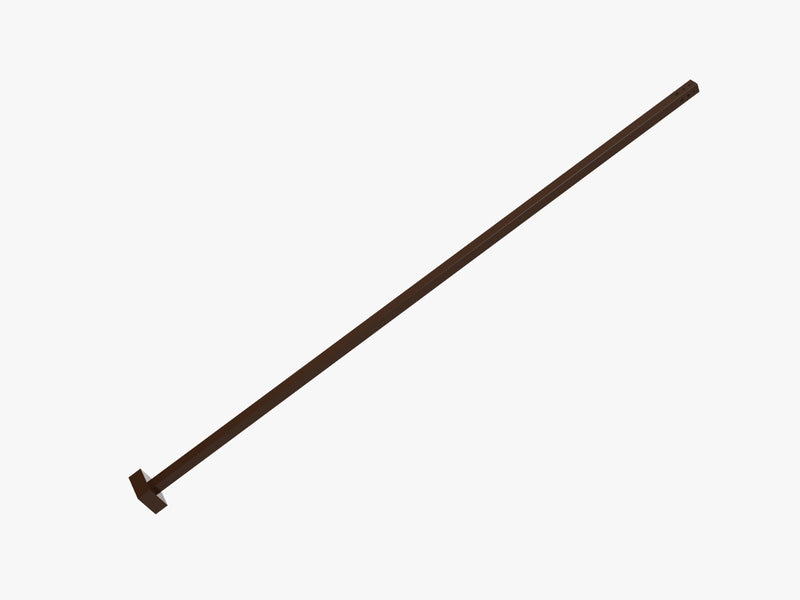

The Steel Tech Lights 25FT × 4-Inch Square Steel Light Pole is a commercial-grade outdoor lighting pole designed for parking lots, retail centers, industrial parks, schools, universities, office buildings, public areas, and other large exterior lighting applications.
Constructed from high-strength steel tubing, this straight square pole conforms to ASTM A500 Grade B specifications with a minimum yield strength of 46,000 PSI. The 25FT model features 11-gauge steel construction and a 4-inch square profile.
For exterior durability, the pole receives hot-dip galvanizing and a textured architectural bronze powder-coat finish.
The pole includes anchor bolts, a two-piece formed steel base cover, and a reinforced hand hole and cover with ground screw. Standard poles are predrilled on four sides and include a polycarbonate top cover and plugs for unused mounting locations.
Features
- 25FT straight square steel light pole
- 4-inch square profile
- 11-gauge steel
- ASTM A500 Grade B
- 46,000 PSI minimum yield strength
- Hot-dip galvanized
- Textured architectural bronze powder-coat finish
- Anchor bolts included
- Base cover included
- Reinforced hand hole and cover with ground screw
- Predrilled mounting holes on four sides
- Polycarbonate top cover
- Hole plugs for unused mounting locations
- Designed for commercial area-lighting applications
- 1-Year Limited Warranty
Construction & Dimensions
-
Height: 25FT
-
Shape: Straight Square
-
Pole Size: 4 Inches
-
Gauge: 11
-
Steel Standard: ASTM A500 Grade B
-
Minimum Yield Strength: 46,000 PSI
-
Weight: Approximately 190 lb
-
Base: 11 Inches
-
Bolt Circle: 185 × 185 mm (7.28" × 7.28")
-
Anchor Bolt Size: M20 × 842 × 100 mm
-
Anchor Bolts: Included
-
Base Cover: Included
-
Hand Hole: Reinforced hand hole and cover with ground screw
-
Mounting Holes: Predrilled on four sides
EPA / Wind Loading
The manufacturer's EPA chart lists maximum EPA values for the 25FT square pole of 8.9 sq. ft. at 70 MPH, 6.9 at 80 MPH, 5.7 at 90 MPH, 4.1 at 100 MPH, 3.6 at 110 MPH, and 2.2 at 120 MPH. The manufacturer also illustrates Single, D90, D180, T90 and Q90 fixture configurations. The complete fixture arrangement must remain within the appropriate EPA and wind-loading requirements.
Applications
- Large parking lots
- Shopping centers
- Retail properties
- Warehouses
- Distribution centers
- Industrial facilities
- Schools and universities
- Commercial campuses
- Office complexes
- Municipal properties
- Building perimeters
- Area and security lighting
Installation Information
The manufacturer's documentation provides foundation-reference information for the 20–25FT pole family. These dimensions are reference information only and should not be treated as a universal foundation specification.
Final foundation design must account for soil conditions, local wind conditions, fixture EPA and configuration, applicable codes, and project-specific engineering requirements.
Additional mounting components may be required for certain arm or slip-fitter configurations.
Specifications
-
Product Type: Commercial Steel Light Pole
-
Height: 25FT
-
Shape: Square
-
Nominal Size: 4"
-
Gauge: 11
-
Steel Specification: ASTM A500 Grade B
-
Minimum Yield Strength: 46,000 PSI
-
Surface Treatment: Hot-Dip Galvanized
-
Finish: Textured Architectural Bronze Powder Coat
-
Weight: Approximately 190 lb
-
Base: 11"
-
Bolt Circle: 185 × 185 mm (7.28" × 7.28")
-
Anchor Bolt Specification: M20 × 842 × 100 mm
-
Anchor Bolts Included: Yes
-
Base Cover: Included
-
Hand Hole: Reinforced with cover and ground screw
-
Mounting Holes: Predrilled on four sides
-
Warranty: 1-Year Limited Warranty
Important Pole & Fixture Compatibility Notice
Pole suitability depends on fixture EPA, fixture weight, quantity and mounting configuration, wind speed, local conditions, foundation design, and applicable building requirements. The complete pole-and-fixture configuration should be verified for the specific project before installation.
