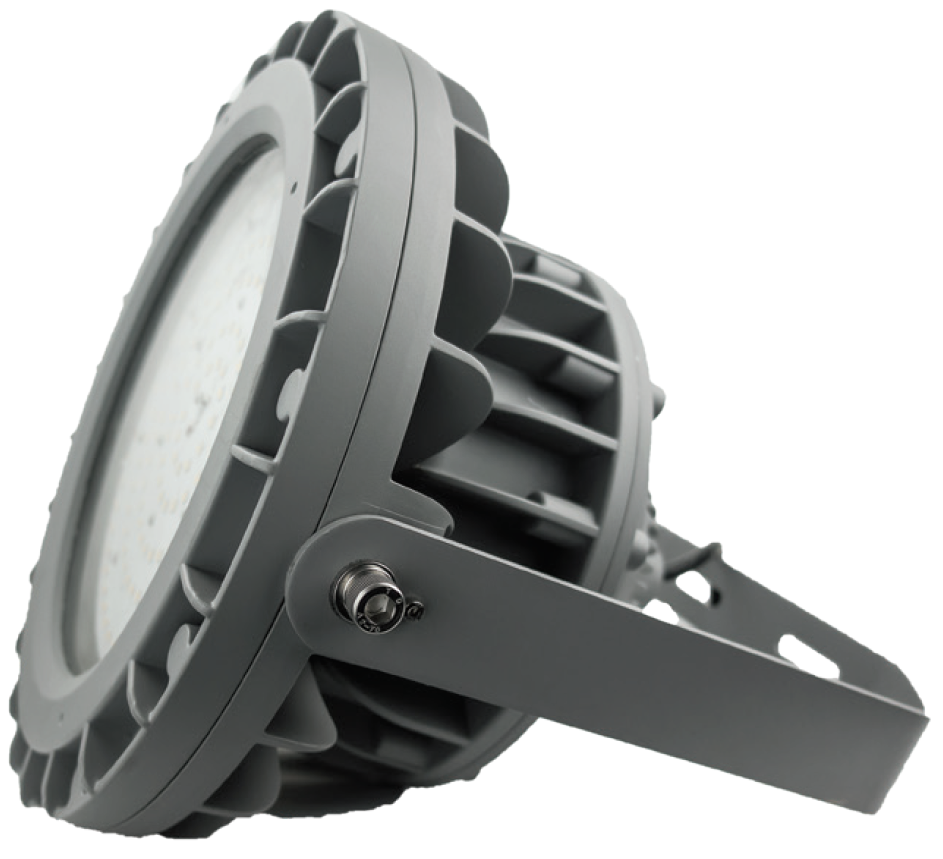

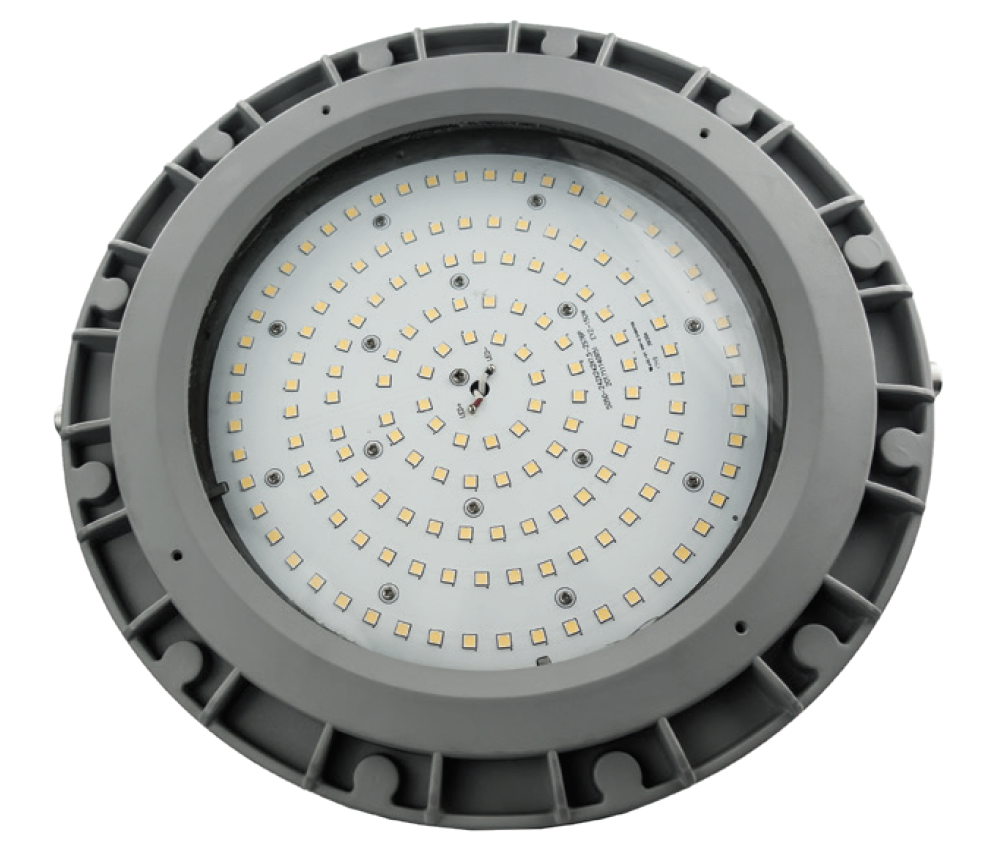

Steel Tech Lights E‑Series Explosion‑Proof LED Light Fixture

Industrial‑Grade Hazardous Location LED Lighting

Steel Tech Lights | Engineered for Reliability, Performance & Compliance | 5‑Year Warranty

Product Overview

The Steel Tech Lights E‑Series Explosion‑Proof LED Light Fixture is designed to provide powerful, uniform illumination in demanding industrial, hazardous, and extreme‑environment applications. Built for environments where safety and compliance are essential, this fixture combines rugged construction with high performance to support continuous operation in facilities with elevated safety requirements.

Key Features & Benefits

• Explosion‑proof design for classified hazardous locations

• Engineered with industrial‑grade materials and strict quality control

• Provides 13,500 lumens of high‑output LED illumination

• 5000K daylight color for clear visibility

• Corrosion‑resistant, vibration‑resilient construction

• Surface or pendant mounting supported

• Suitable for indoor, outdoor, wet, and marine environments

• 5‑Year Manufacturer Warranty for long‑term assurance

• Free shipping on all quantities

Technical Specifications

• Wattage: 100W

• Lumens Output: 13,500 lm

• Color Temperature: 5000K

• Input Voltage: AC100–277V

• Beam Angle: 120°

• CRI: >80

• High Efficacy: Up to 140 lm/W

• Mounting Options: Surface and pendant installation

• Optics: Wide and narrow distribution options for uniform light

• Housing: Copper‑free aluminum for corrosion resistance

• High Vibration Resistance: Built for industrial operation

• Dimensions: 14.2" × 14.2" × 10.8"

Certifications & Hazardous Location Ratings

Steel Tech Lights E‑Series fixtures meet rigorous safety and environmental standards for use in critical industrial settings:

Protection & Enclosure Ratings

• NEMA 4X – Corrosion‑resistant, weather‑tight

• IP66 – Dust‑tight and guarded against powerful water jets

• IK10 – High impact resistance

UL & CSA Listings

• UL1598 & UL1598A – Approved for wet and hazardous locations

• UL844 – Hazardous location lighting standard

• CSA C22.2 No.137 / No.250.0 – Canadian safety compliance

Hazardous Location Classifications

• Class I, Division 1 – Groups C, D

• Class I, Division 2 – Groups A, B, C, D

• Class II, Division 1 – Groups E, F, G

• Class II, Division 2 – Groups E, F, G

• Class III

Additional Ratings

• Marine & Wet Locations Rated

• IECEx Certified

• ATEX Certified

Typical Applications

Steel Tech Lights E‑Series LED fixtures are ideal for hazardous and industrial settings such as:

• Petroleum production, refining, and storage

• Chemical processing and handling facilities

• Mining and mineral processing environments

• Fabrication shops and heavy industry

• Pumping stations and utility plants

• Offshore platforms and marine structures

• Aerospace facilities and clean rooms

• Flour milling and food production

• High humidity, high dust, or high temperature zones

Quality & Reliability

Steel Tech Lights explosion‑proof LED fixtures are built with industrial‑grade materials and rigorous quality control to ensure dependable lighting performance where safety and uptime are critical. Designed to withstand harsh conditions, E‑Series fixtures help reduce maintenance needs and support long operational life in hazardous environments.
