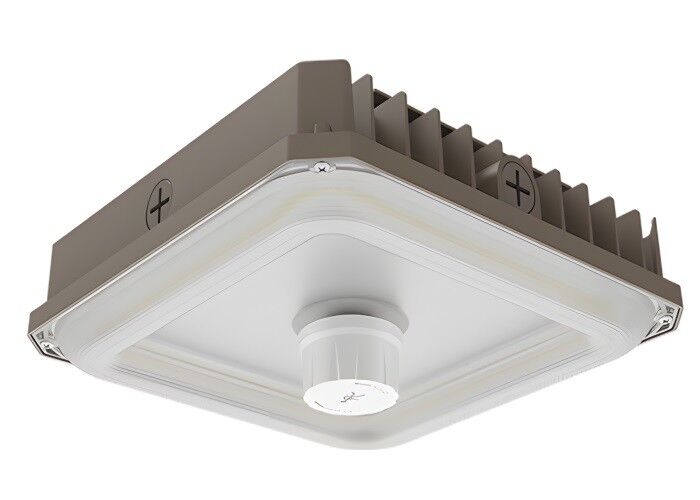

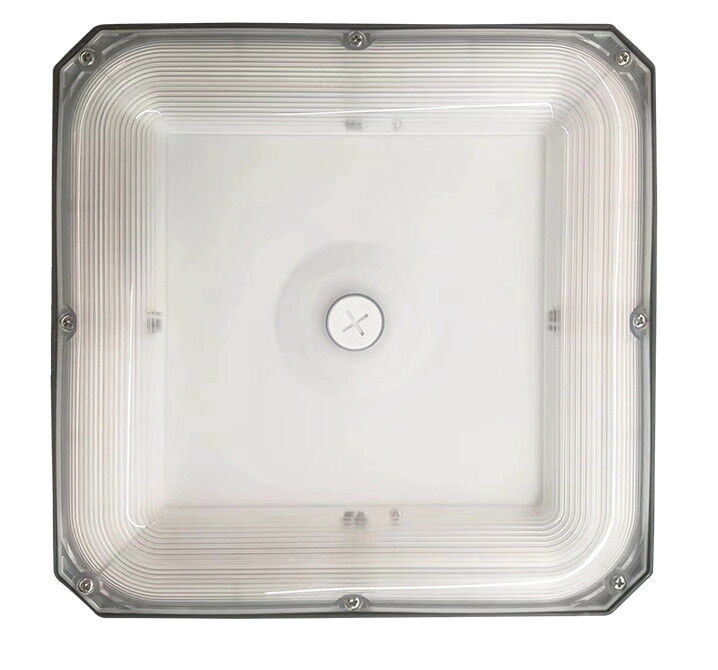

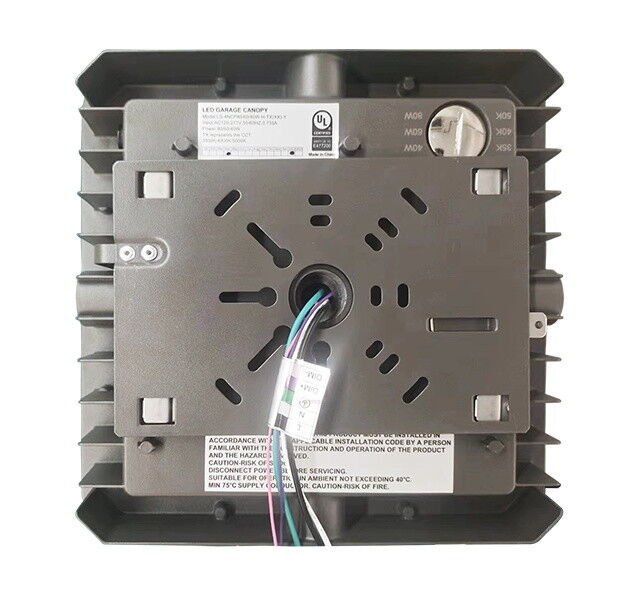

Steel Tech Lights LED Square Canopy Light – 30W/40W/60W/80W/100W Selectable – Up to 12,970 Lumens – 3500K/4000K/5000K – 120-277V – 0-10V Dimmable

Product Overview

The Steel Tech Lights 100W Selectable LED Square Canopy Light is a versatile commercial and industrial lighting solution designed for parking garages, covered parking areas, building entrances, drive-throughs, loading areas, and other covered outdoor applications.

With five field-selectable wattage settings of 30W, 40W, 60W, 80W, and 100W, a single fixture can accommodate a wide range of mounting heights and illumination requirements. At maximum output, the fixture produces up to 12,970 lumens.

Selectable 3500K, 4000K, and 5000K color temperatures provide additional flexibility, allowing the desired light appearance to be selected during installation.

Designed for 120-277V electrical systems and equipped with 0-10V dimming, this fixture provides contractors and facility managers with a highly configurable canopy-lighting solution while reducing the number of individual fixture configurations that need to be stocked.

Features

• 30W / 40W / 60W / 80W / 100W field-selectable wattage
• Produces up to 12,970 lumens
• 3500K / 4000K / 5000K selectable color temperature
• 120-277V input voltage
• 0-10V dimming
• Five wattage settings in one fixture
• Three color temperatures in one fixture
• Sensor-ready design
• Commercial-grade LED construction
• UL/ETL Listed
• DLC Listed
• 5-year limited warranty

Benefits

• Five wattages in one fixture — select the appropriate output for the installation instead of stocking multiple fixed-wattage canopy lights.
• Up to 12,970 lumens — provides substantial illumination for parking garages and commercial covered areas.
• Selectable color temperature — choose 3500K, 4000K, or 5000K during installation.
• Reduced inventory requirements — one fixture covers numerous common canopy-lighting applications.
• Energy-saving flexibility — reduce wattage where the full 100W output isn't required.
• 0-10V dimming — compatible with appropriate lighting-control systems.
• Sensor-ready design — provides additional flexibility for projects requiring lighting controls.
• Commercial-grade performance — designed for demanding commercial and industrial applications.

Construction Features

• Commercial-grade square LED canopy housing
• Integrated selectable-wattage controls
• Integrated selectable-CCT controls
• 0-10V dimming capability
• Sensor-ready configuration
• Designed for 120-277V electrical systems
• LED light source eliminates traditional HID lamp replacement
• Designed for ceiling-mounted commercial canopy applications

Applications

• Parking garages
• Covered parking areas
• Parking structures
• Building entrances
• Drive-throughs
• Loading areas
• Covered walkways
• Commercial properties
• Industrial facilities
• Warehouses
• Exterior canopies
• HID canopy-lighting replacements

Specifications

• Product Type: LED Square Canopy Light
• Maximum Wattage: 100W
• Selectable Wattage: 30W / 40W / 60W / 80W / 100W
• Maximum Light Output: 12,970 lumens
• Selectable CCT: 3500K / 4000K / 5000K
• Input Voltage: 120-277V AC
• Dimming: 0-10V
• Sensor Capability: Sensor Ready
• Certification: UL/ETL Listed
• DLC: DLC Listed
• Warranty: 5-Year Limited Warranty
• Application: Parking Garage / Canopy / Commercial Covered Area Lighting
