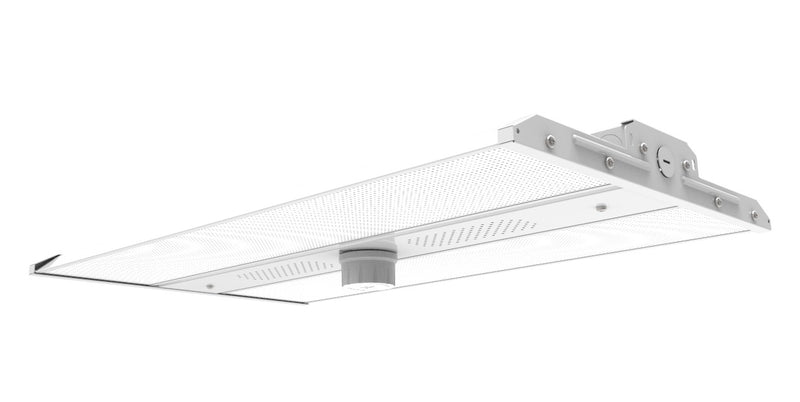

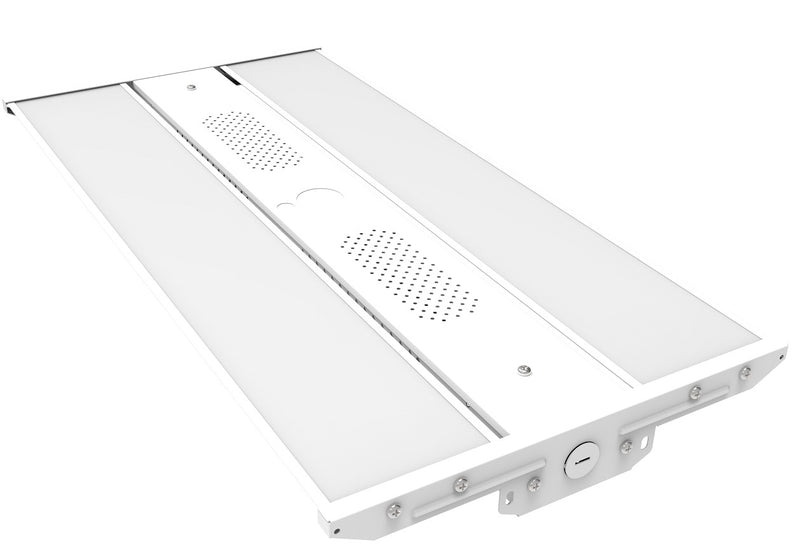

Steel Tech Lights 2FT LED Linear High Bay Light – 110W/165W/220W Selectable – Up to 33,189 Lumens – 3500K/4000K/5000K – 277-480V – 0-10V Dimmable

Product Overview

The Steel Tech Lights 2FT 220W High-Voltage LED Linear High Bay Light delivers powerful, adjustable illumination for commercial and industrial facilities operating on 277-480V electrical systems.

Selectable 110W, 165W, and 220W settings allow the fixture's power and light output to be configured for different ceiling heights, illumination requirements, and applications. At maximum output, the fixture produces up to 33,189 lumens.

The fixture also provides selectable 3500K, 4000K, and 5000K color temperatures, allowing installers to select the desired lighting appearance at installation.

With 0-10V dimming, high-output integrated LEDs, and a commercial-grade linear design, this fixture is an excellent solution for warehouses, manufacturing facilities, distribution centers, factories, gymnasiums, workshops, and other large high-ceiling spaces.

Features

• Selectable 110W / 165W / 220W wattage
• Up to 33,189 lumens
• Selectable 3500K / 4000K / 5000K
• AC277-480V high-voltage operation
• 0-10V dimmable
• High-efficiency integrated LED design
• Multiple wattage and CCT configurations in one fixture
• Commercial and industrial-grade construction
• Long-life LED technology
• 5-year limited warranty

Benefits

• Provides up to 33,189 lumens for demanding high-ceiling applications
• Selectable wattage lets contractors adjust output without changing fixtures
• Three selectable color temperatures increase installation flexibility
• Designed specifically for high-voltage commercial and industrial systems
• 0-10V dimming allows additional energy and illumination control
• Reduces the number of different fixture SKUs needed for projects
• Excellent solution for both new installations and lighting upgrades

Construction Features

• Durable linear high-bay housing
• Integrated high-output LED light source
• High-voltage LED driver
• 0-10V dimming capability
• Commercial and industrial-grade construction
• Designed for suspended high-bay installation

Applications

• Warehouses
• Distribution centers
• Manufacturing plants
• Factories
• Industrial facilities
• Workshops
• Gymnasiums
• Commercial buildings
• Storage facilities
• High-ceiling production areas

Specifications

• Maximum Wattage: 220W
• Selectable Wattage: 110W / 165W / 220W
• Maximum Light Output: 33,189 lumens
• Selectable CCT: 3500K / 4000K / 5000K
• Input Voltage: AC277-480V
• Dimming: 0-10V
• Fixture Type: LED Linear High Bay
• Nominal Length: 2FT
• Warranty: 5-Year Limited Warranty
• Certifications: UL/ETL Listed, DLC Listed
