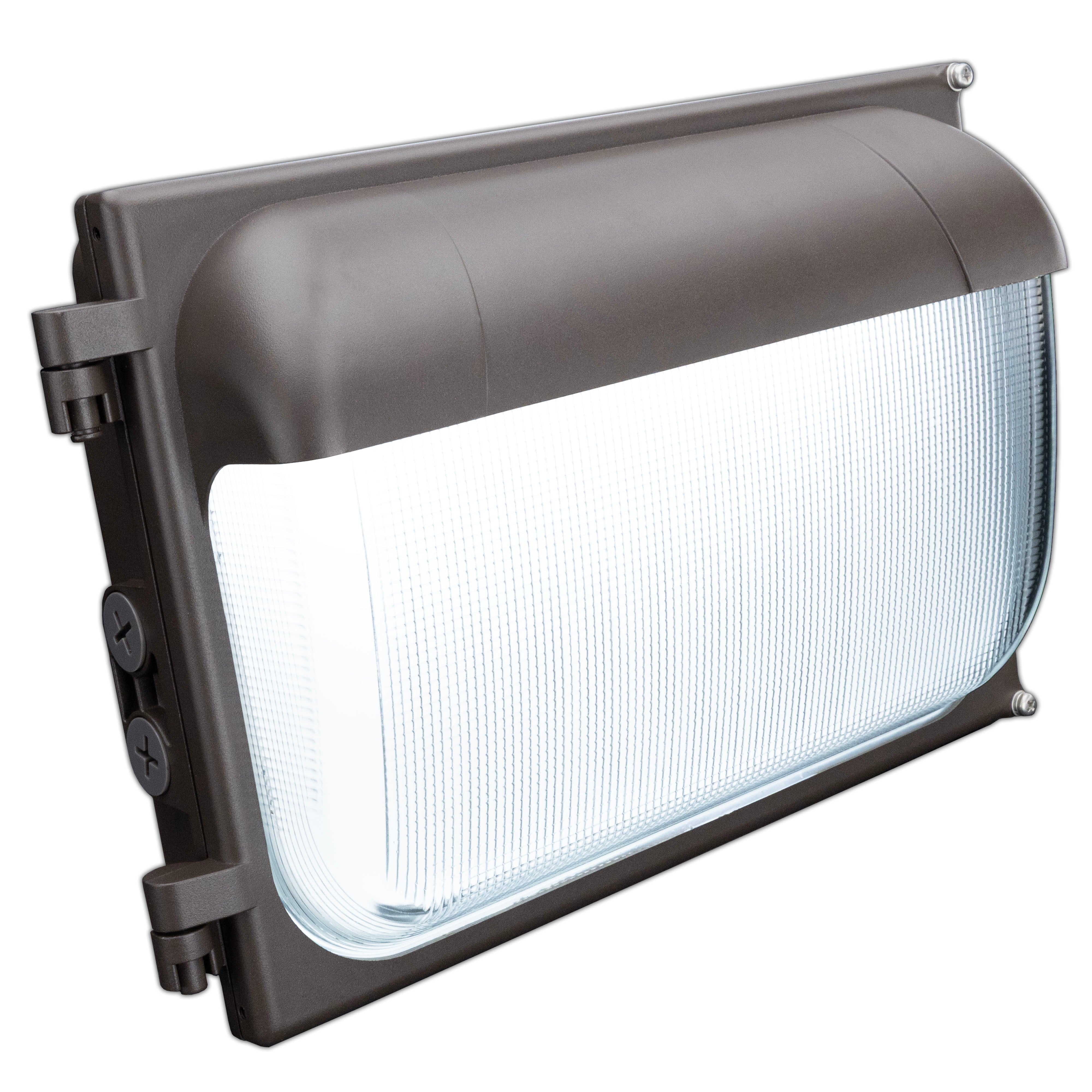

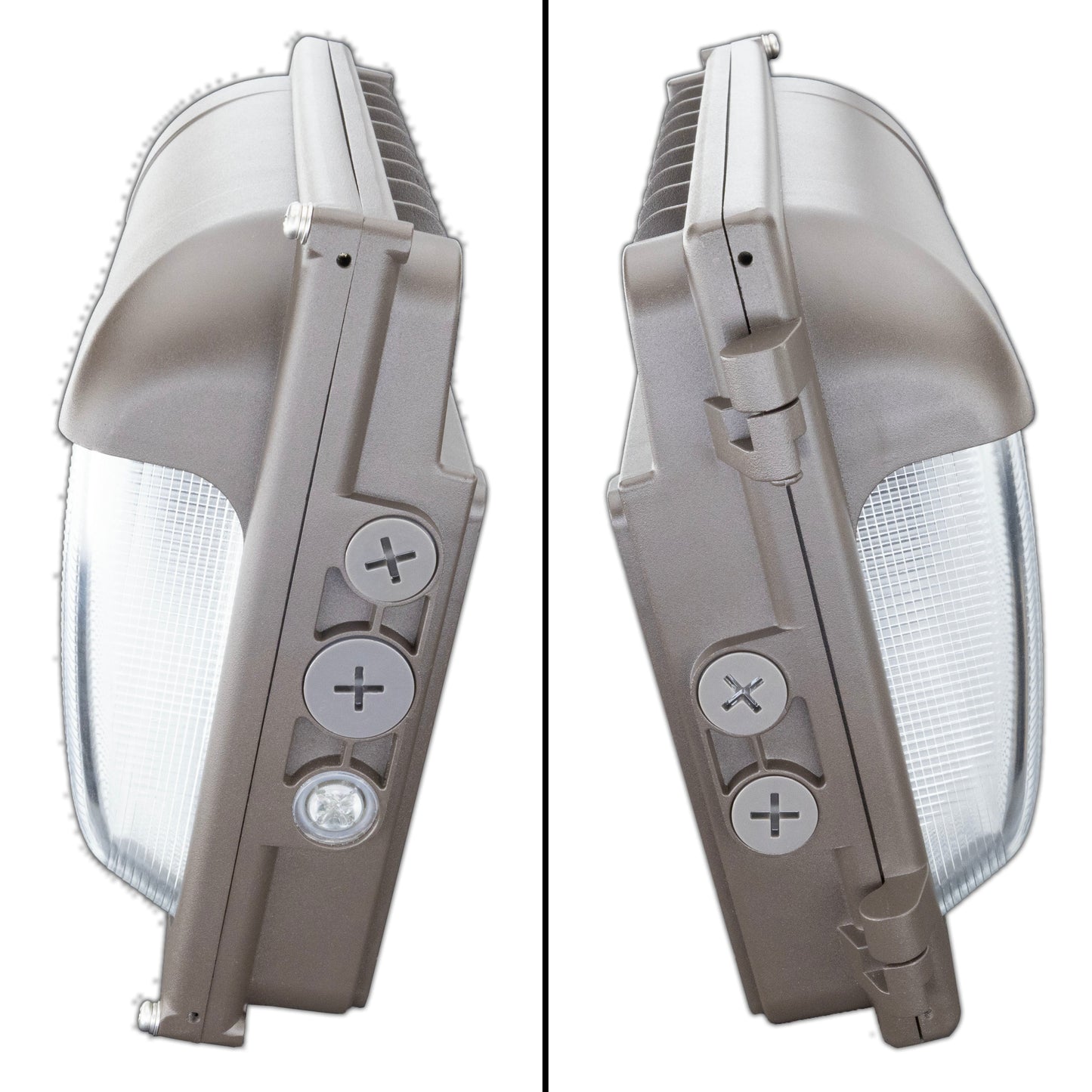

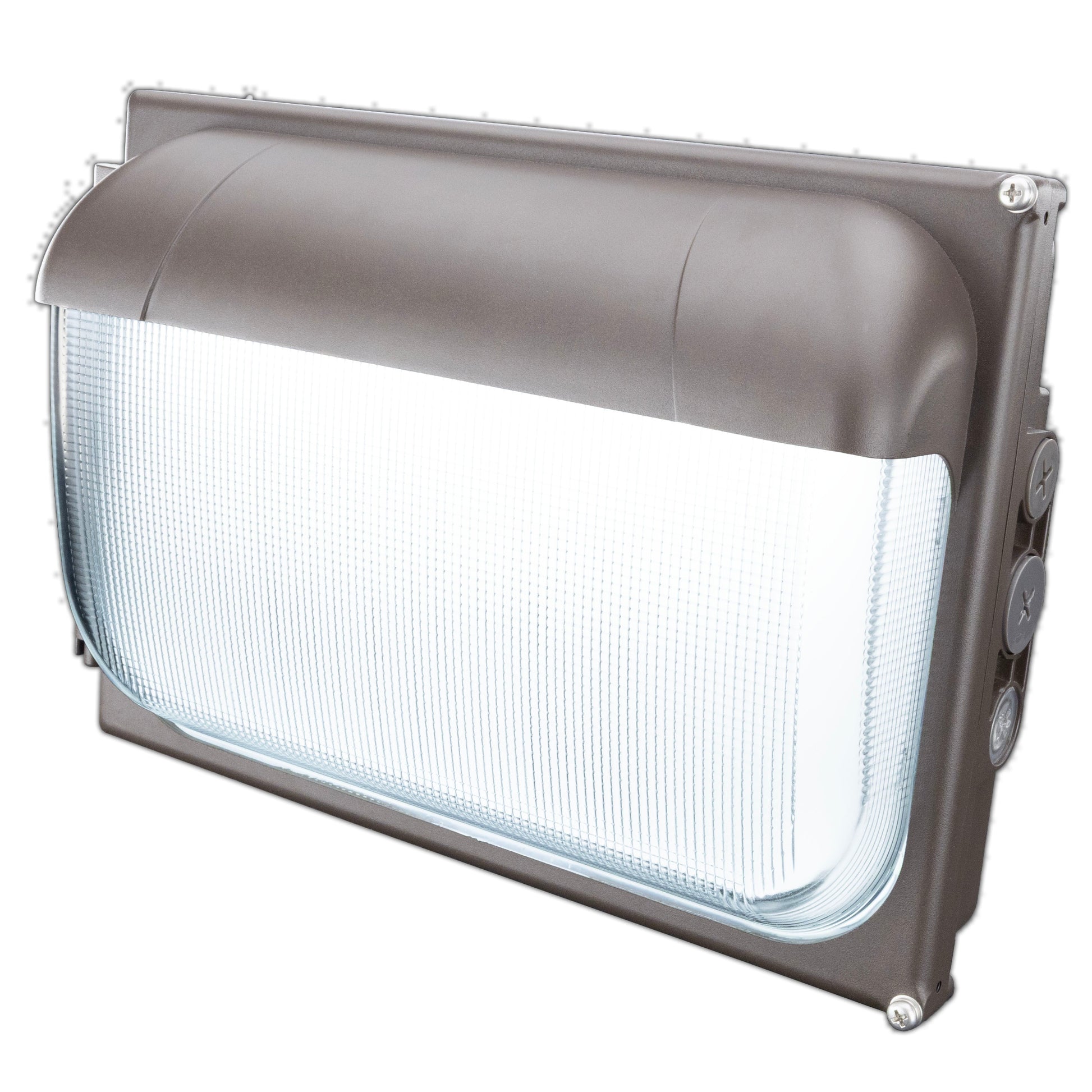

Slim LED Wall Pack, Up to 120W & 14,400 Lumens

Slim LED Wall Pack, Up to 120W & 14,400 Lumens

Regular price $105.00 USD
Regular price $159.00 USD Sale price $105.00 USD
Sale Sold out
Lumens
Color Temperature

FREE SHIPPING ON ALL QUANTITIES

Certifications: UL Listed Damp Location

Warranty: 5 years on complete fixture

Specifications

LEDs

  • Choose from 80-100-120 Watts
  • 9,600-12,000-14,400Lumens
  • Color Temp: 3000-4000-5000K
  • 50,000 hours of operation
  • Minimum Starting Temperature: -30°C

Housing

  • One-piece die-cast aluminum housing
  • Hinged, removable die-cast aluminum door
  • One-piece silicone gasket seals the optical chamber
  • Textured bronze finish
  • Glass Lens
  • Stainless hardware
  • Length: 14.25"   Height: 9.25"   Depth: 4.25"

Electrical

  • LED driver and electrical components are mounted to the die-cast housing for optimal heat sinking and operating efficiency

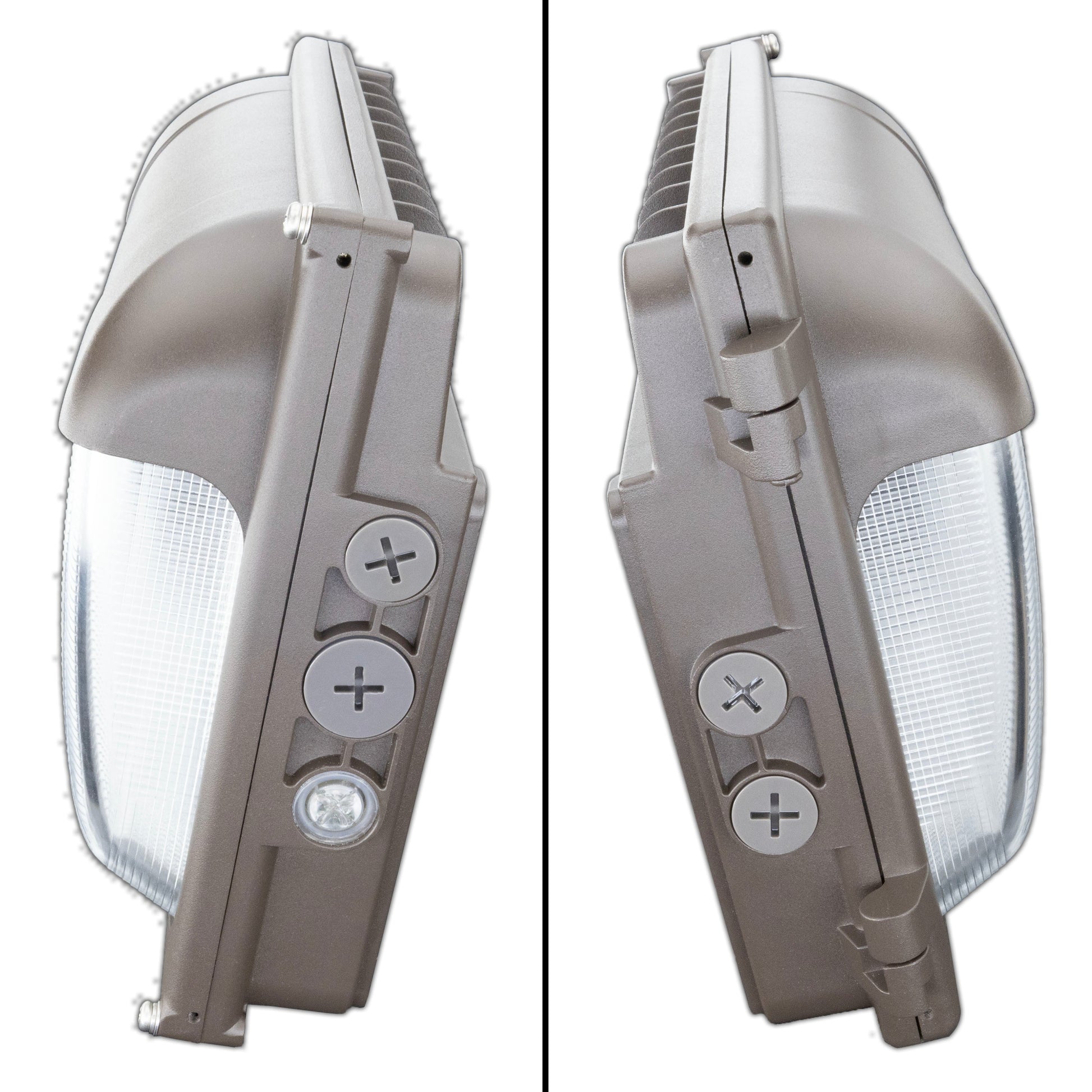

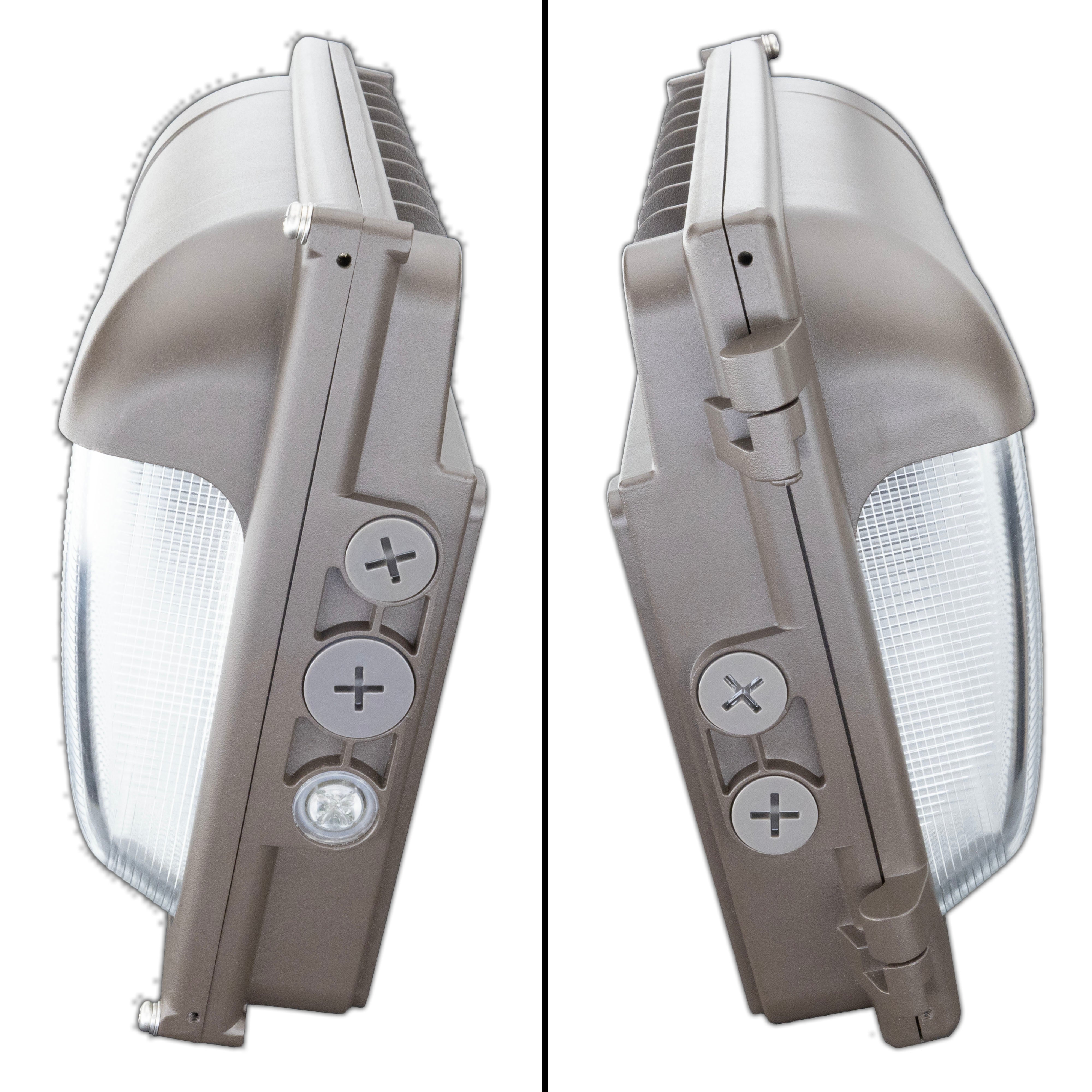

  • Four ½” (2 on Left, 1 on Right, 1 on Rear) threaded conduit entry points allow for thru-branch wiring.
  • 0-10V Dimmable

LED Driver

  • UL Recognized integral LED electronic driver is Class 2 rated for 120-277V, 50-60 Hz.

Optical

  • Highly reflectance white diffusing anodized aluminum reflector provide high efficiency illumination
  • Optical assemblies include impact resistant borosilicate refractive glass

Applications

  • Building front side
  • Building security
  • Parking Facilities
  • Entry Ways
  • Perimeter/pathway lighting
  • Underpasses
  • Eclipse Optic Tech
  • 60 Day Returns
  • 5 Year Warranty
