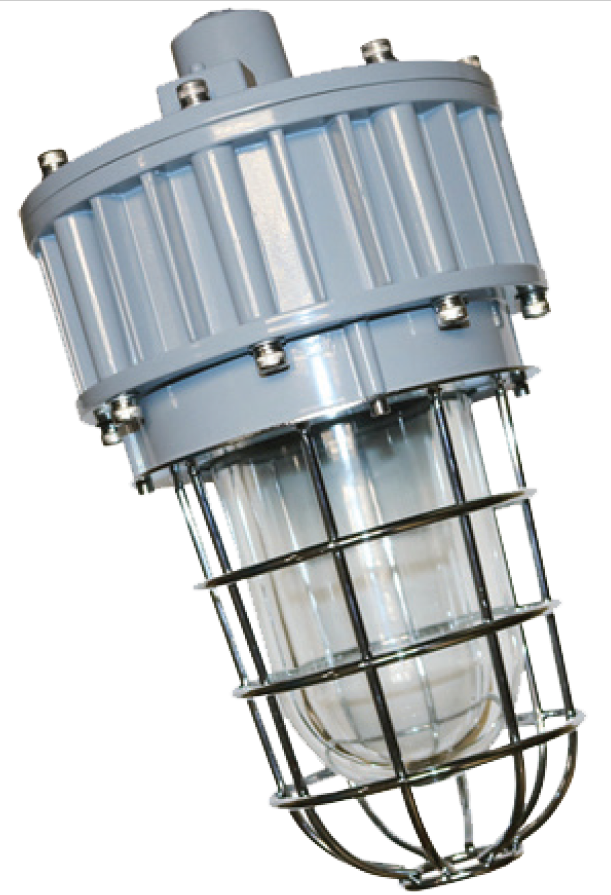

Steel Tech Lights G‑Series Explosion‑Proof LED Light Fixture

Hazardous Location Industrial LED Lighting | 5‑Year Warranty

SKU: STL‑EP‑G‑30‑40W‑5K‑277V

---

Product Overview

The Steel Tech Lights G‑Series Explosion‑Proof LED Light Fixture is engineered for Classified Hazardous Locations where safety, durability, and regulatory compliance are non‑negotiable. Built with industrial‑grade materials and high‑vibration resistance, this fixture delivers consistent, high‑quality illumination in extreme operating environments.

Designed for petroleum, chemical, marine, mining, and heavy industrial applications, the G‑Series combines high luminous efficacy (up to 140 lm/W) with a rugged, corrosion‑resistant housing to ensure long service life and reduced maintenance.

---

Key Features & Benefits

• Explosion‑proof LED fixture for hazardous environments

• Built to high‑quality industrial standards

• High‑efficiency LED performance with uniform light output

• High vibration resistance for demanding installations

• Corrosion‑resistant copper‑free aluminum housing

• Wide voltage compatibility for industrial power systems

• Surface mount and pendant installation options

• Wide and narrow optics for controlled, uniform illumination

• 5‑Year Manufacturer Warranty

• Free Shipping

---

Certifications & Compliance

• NEMA 4X

• IP66

• IK10

• UL 1598 & UL 1598A

• UL 844

• CSA C22.2 No. 137 / No. 250.0

• Class I, Division 1 – Groups C, D

• Class I, Division 2 – Groups A, B, C, D

• Class II, Division 1 – Groups E, F, G

• Class II, Division 2 – Groups E, F, G

• Class III

• Marine Locations Rated

• Wet Locations Rated

• ATEX Certified

• IECEx Certified

---

Technical Specifications

• Wattage Options:

  • 20W

  • 40W

• Lumens Output:

  • 20W: 3000 lumens

  • 40W: 5,400 lumens

• Color Temperature: 5000K

• Input Voltage: AC 100–277V

• Beam Angle: 120°

• CRI: >80

• Efficacy: Up to 140 lm/W

• Housing Material: Copper‑free aluminum

• Mounting Options: Surface mount and pendant installation

• Optics: Wide and narrow optics available

• Vibration Resistance: High

---

Dimensions

• 6.8" x 6.8" x 16.1"

---

Applications

• Petroleum production and refining

• Petroleum loading and transportation

• Petroleum storage and retail facilities

• Paint and coating facilities

• Pumping stations in any environment

• Metal smelting, foundry, and fabrication

• Mining operations and service areas

• Offshore and ocean platform facilities

• Aerospace clean rooms and production areas

• Chemical production and storage

• Ocean vessel operations

• Military and space‑grade environments

• Flour and fine particle production and storage

• Food processing and distilling facilities

• Electrical power generation and substations

• High humidity, high vapor, high dust, and high‑temperature locations

---

Warranty & Shipping

• Warranty: 5‑Year Manufacturer Warranty

• Shipping: FREE Shipping on All Quantities
