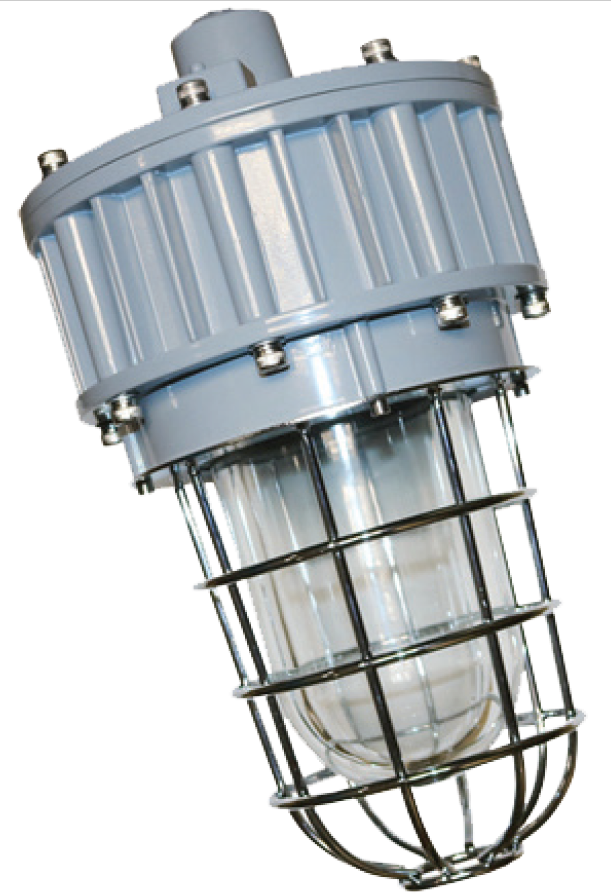

Steel Tech Lights G‑Series Explosion‑Proof LED Light Fixture – 4000K

40W Hazardous Location LED | 5,400 Lumens | IP66 | 5‑Year Warranty

FREE Shipping on All Quantities

---

Product Overview

The Steel Tech Lights G‑Series Explosion‑Proof LED Light Fixture (4000K) is engineered for hazardous industrial environments where durability, compliance, and consistent performance are critical. Designed for classified locations, this fixture delivers reliable illumination in petroleum facilities, refineries, aerospace production areas, marine installations, and other high‑risk settings.

Operating at 40W and producing 5,400 lumens, the G‑Series provides efficient, uniform lighting with efficacy up to 140 lm/W. Its rugged copper‑free aluminum construction resists corrosion and high vibration, ensuring long service life in demanding environments.

---

Key Features

• Explosion‑proof LED fixture for hazardous locations

• 40W output delivering 5,400 lumens

• 4000K neutral white color temperature

• High luminous efficacy up to 140 lm/W

• Copper‑free aluminum housing for corrosion resistance

• High vibration resistance for industrial use

• Surface mount and pendant installation options

• Wide and narrow optics for uniform illumination

• Suitable for marine and wet locations

• 5‑Year Manufacturer Warranty

• Free Shipping

---

Certifications & Compliance

• NEMA 4X

• IP66

• IK10

• UL 1598 & UL 1598A

• UL 844

• CSA C22.2 No. 137 / No. 250.0

• Class I, Division 1 – Groups C, D

• Class I, Division 2 – Groups A, B, C, D

• Class II, Division 1 – Groups E, F, G

• Class II, Division 2 – Groups E, F, G

• Class III

• Marine Locations Rated

• Wet Locations Rated

• ATEX Certified

• IECEx Certified

---

Technical Specifications

• Wattage: 40W

• Lumens: 5,400

• Color Temperature: 4000K

• Voltage: AC100–277V

• Beam Angle: 120°

• CRI: >80

• Efficacy: Up to 140 lm/W

• Housing Material: Copper‑free aluminum

• Mounting Options: Surface mounting and pendant installations

• Optics: Wide and narrow options available

• Vibration Resistance: High

---

Dimensions

• 6.8" × 6.8" × 16.1"

---

Applications

• Petroleum production and refinery facilities

• Petroleum loading and transportation

• Petroleum storage and retail

• Paint facilities

• Pumping stations in any environment

• Metal smelting, foundry, and fabrication

• Mining operations and service

• Ocean platform facilities and structures

• Aerospace clean room and production

• Chemical production and storage

• Ocean vessel operations

• Military space conditions

• Flour and fine particle production and storage

• Food and distilling production

• Electrical power generation and stations

• High humidity, high vapor, high dust, and high‑temperature locations

---

Warranty & Shipping

• Warranty: 5‑Year Manufacturer Warranty

• Shipping: FREE
