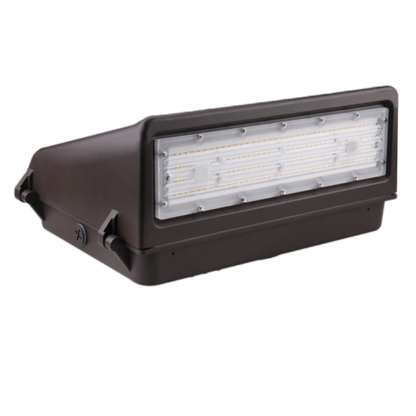

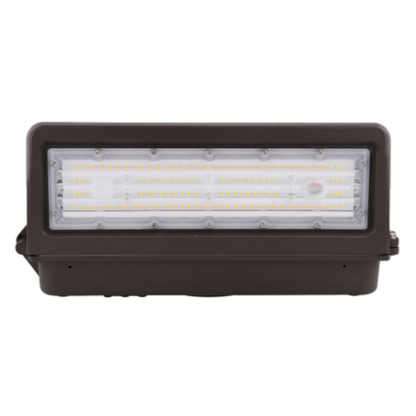

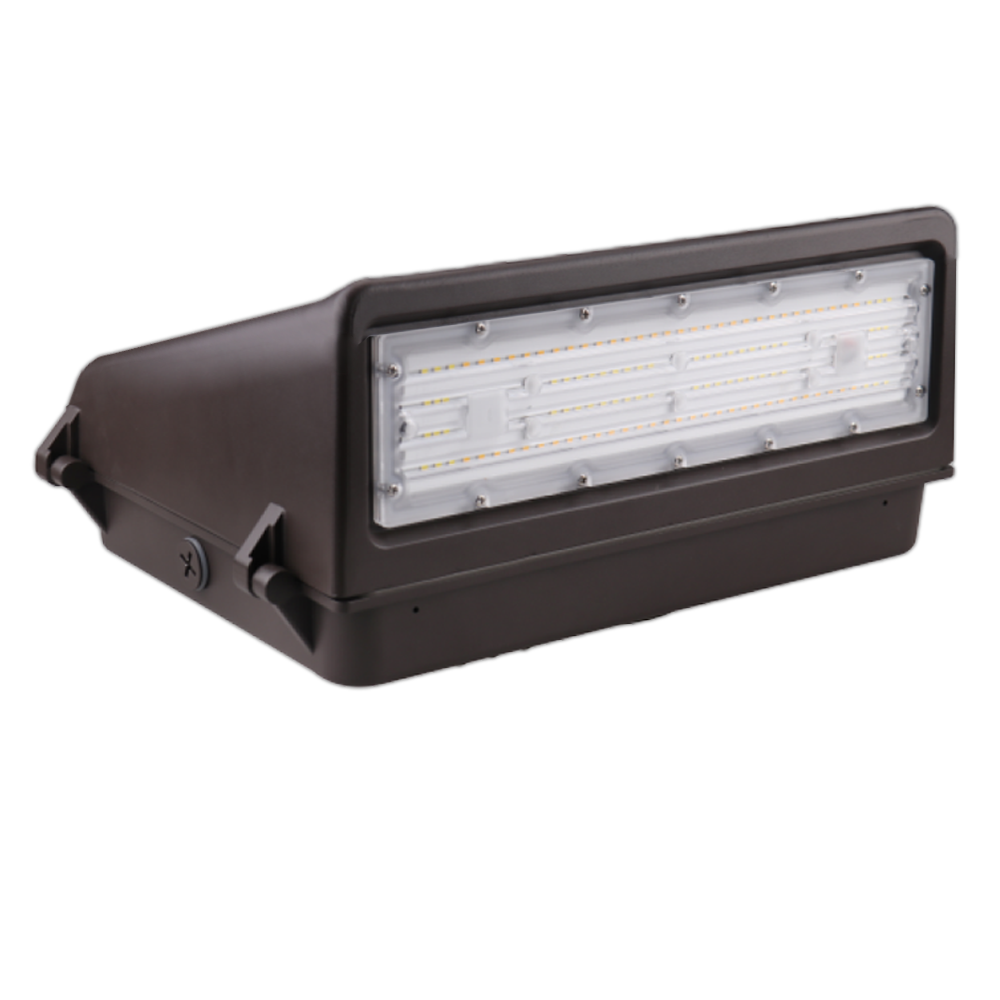

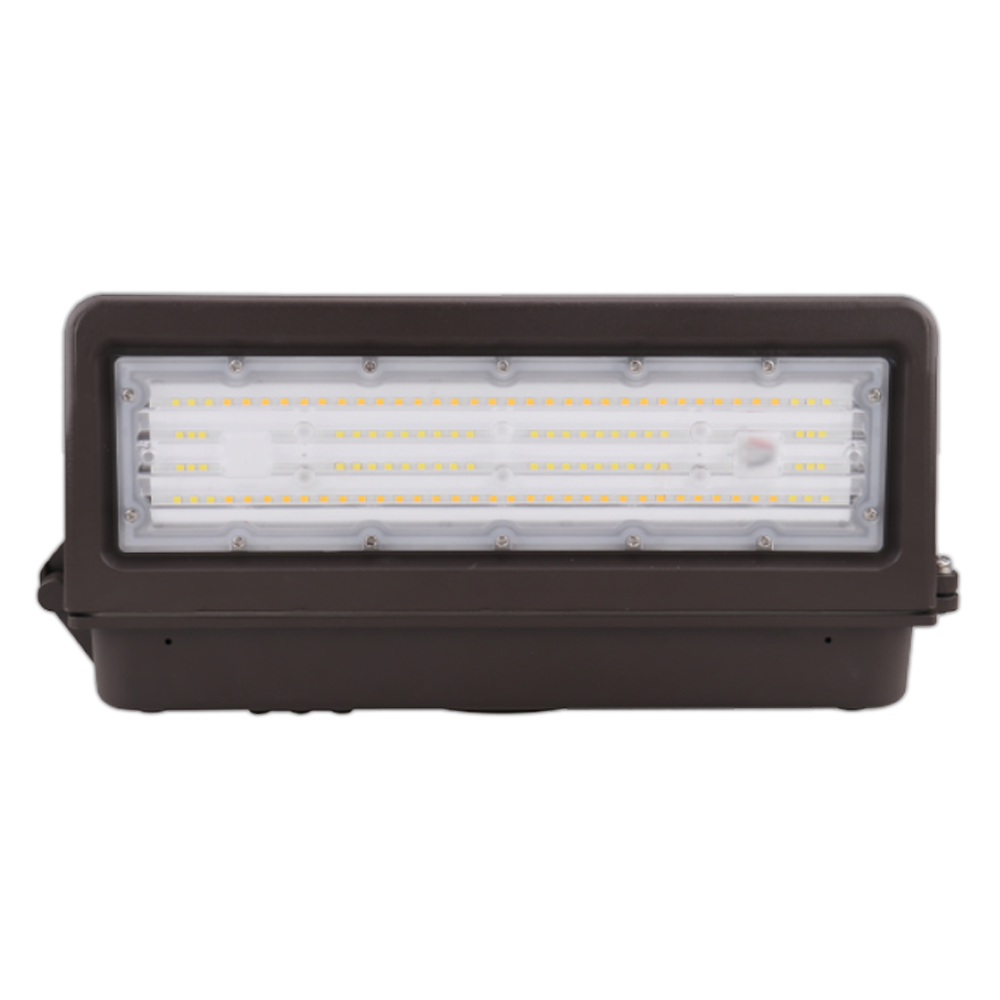

Full Cut Off LED Wall Pack, 80W / 11,200 Lumens / 5000K

FREE SHIPPING ON ALL QUANTITIES

Certifications: UL Listed Damp Location, IP65, DLC Premium Listed, FCC Compliant

Warranty: 5 years on complete fixture

Specifications

LEDs

• 80 Watts
• 11,200Lumens
• Color Temp: 5000K
• 50,000 hours of operation
• Minimum Starting Temperature: -22°F

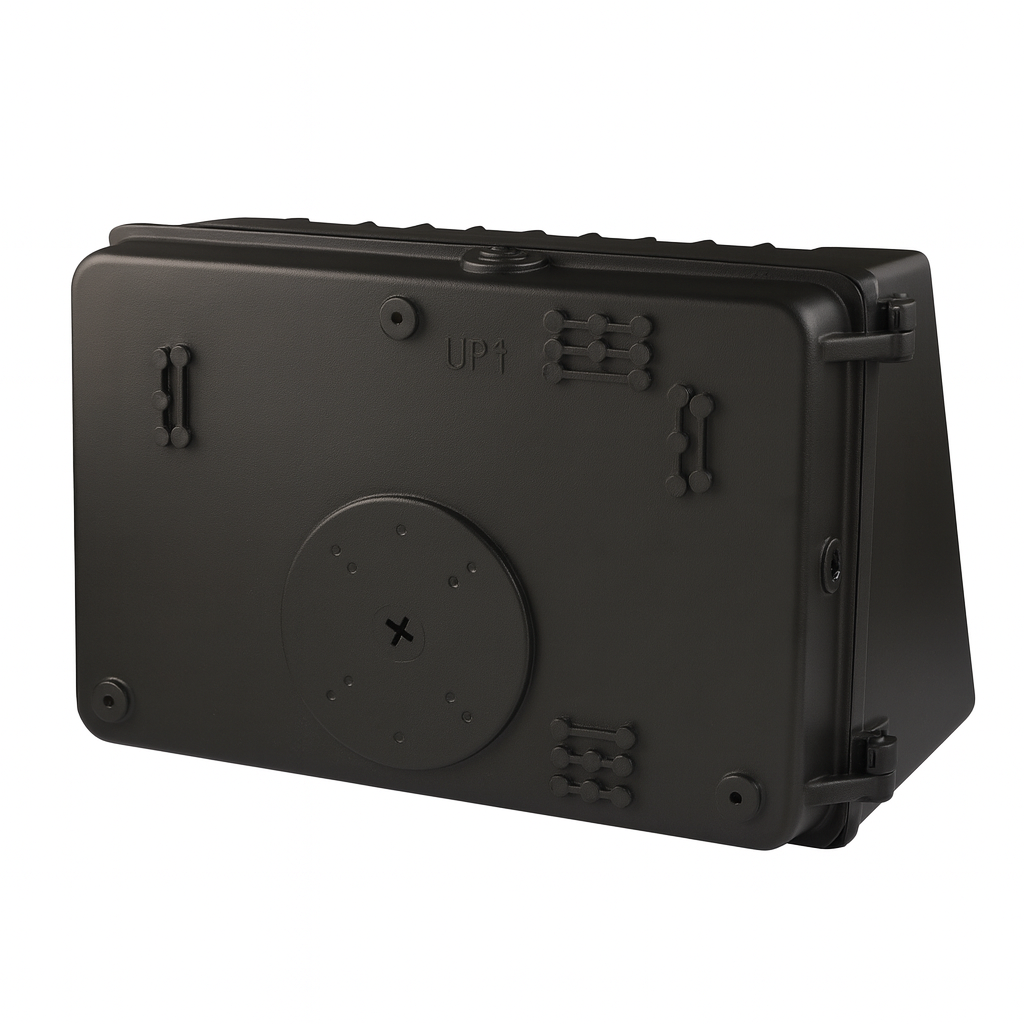

Housing

• One-piece die-cast aluminum housing
• Hinged, removable die-cast aluminum door
• One-piece silicone gasket seals the optical chamber
• Textured bronze finish
• UV-Resistant PC Lens
• Stainless hardware

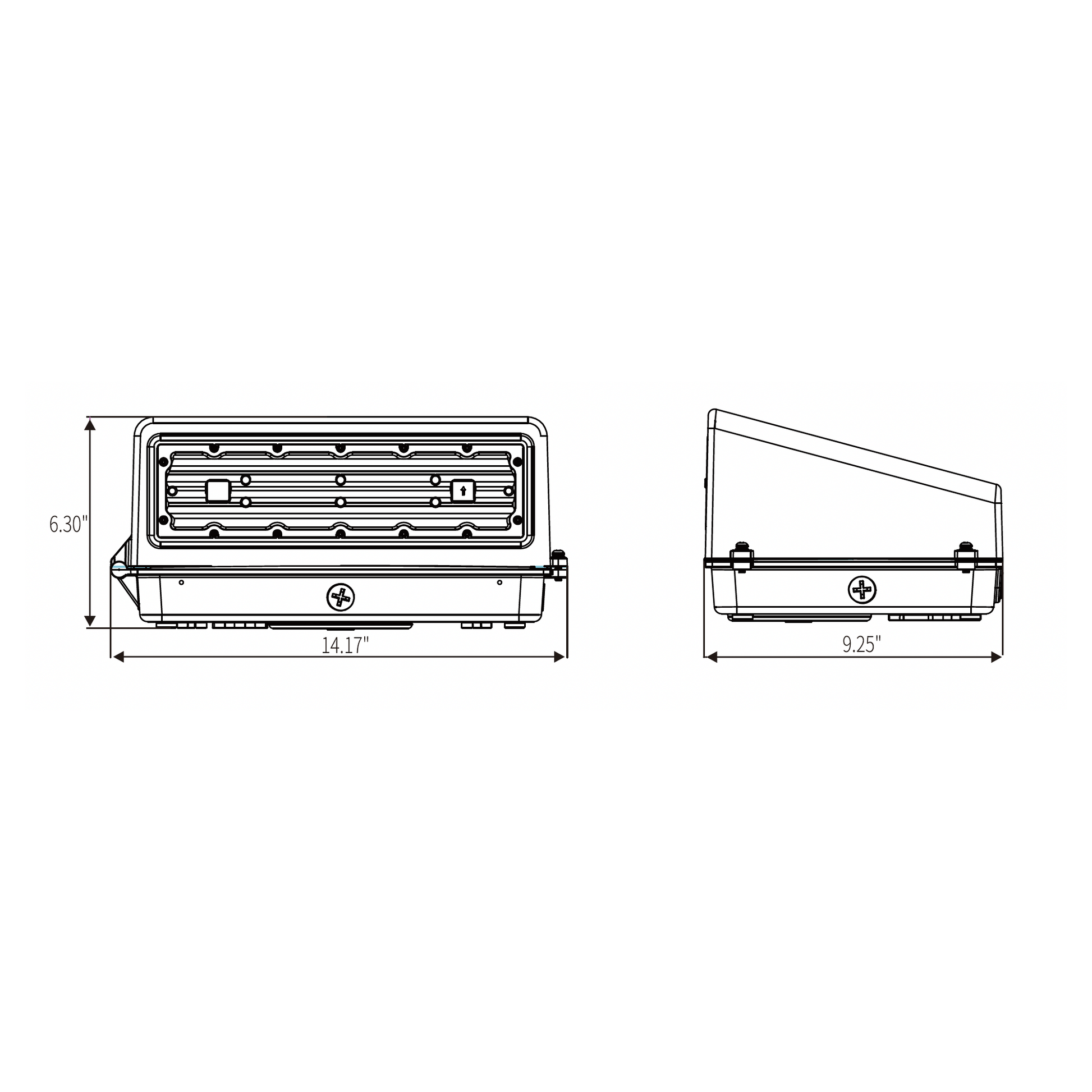

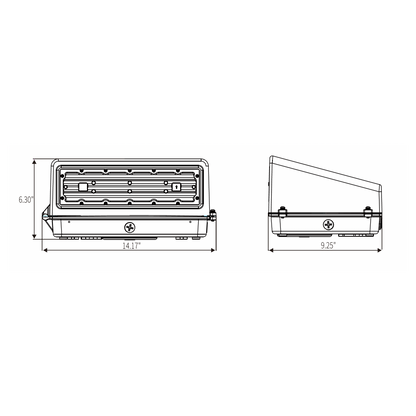

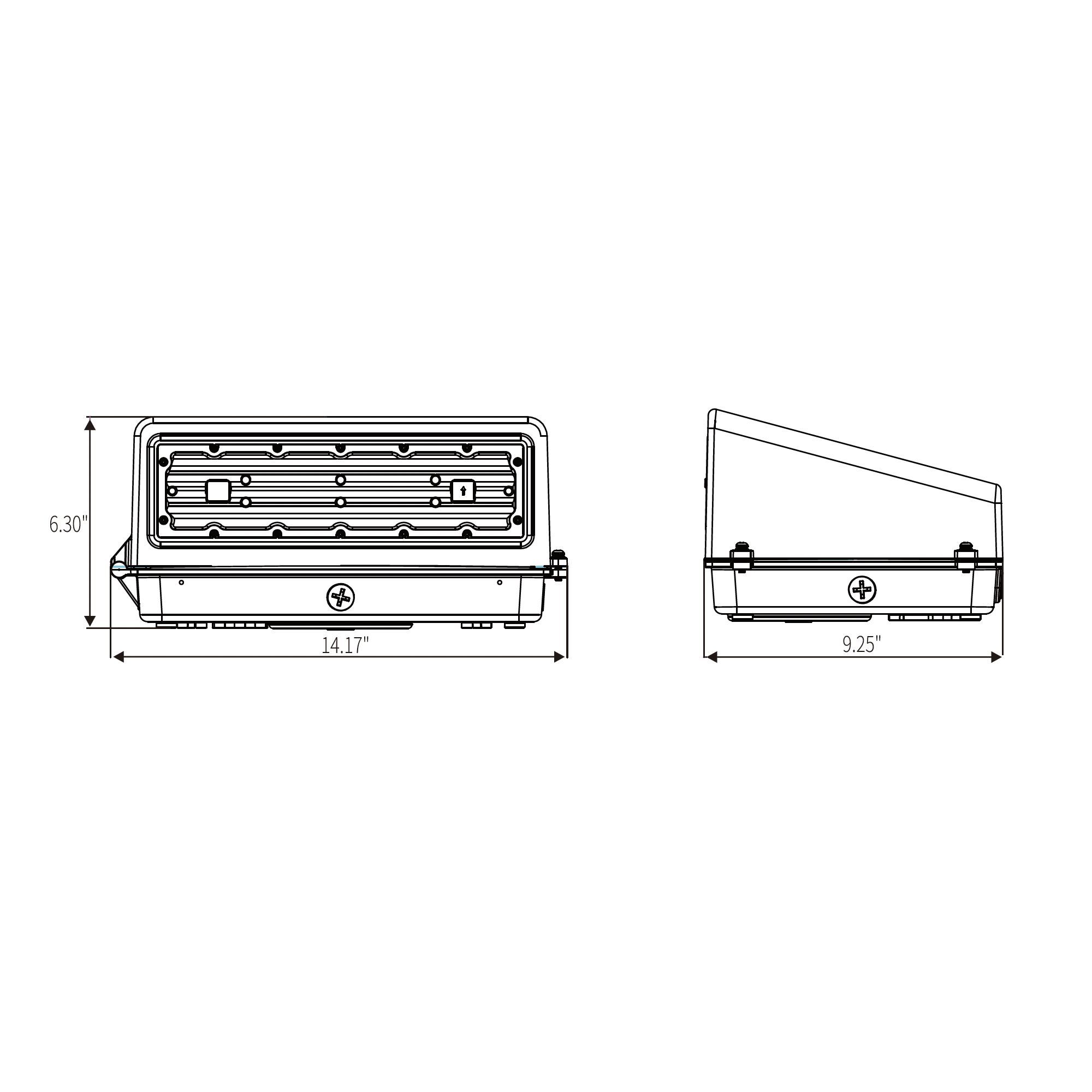

• Length: 14.17"   Height: 9.25"   Depth: 6.3"

Electrical

• LED driver and electrical components are mounted to the die-cast housing for optimal heat sinking and operating efficiency
• ½” threaded conduit entry points allow for thru-branch wiring.
• 0-10V Dimmable
• Integrated Photocell Options

LED Driver

• UL Recognized integral LED electronic driver is Class 2 rated for 120-277V, 50-60 Hz.

Applications

• Building front side
• Building security
• Parking Facilities
• Entry Ways
• Perimeter/pathway lighting
• Underpasses
