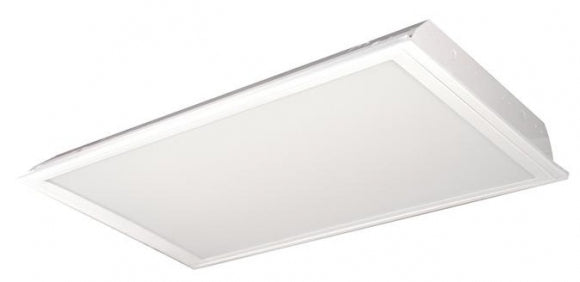

SteelTech 2×4 Select LED Troffer

SteelTech 2×4 Select Tunable LED Back‑Lit Panel

Selectable Wattage & CCT | Up to 10,800 Lumens | 150 lm/W | ETL Listed

---

Product Overview

The SteelTech 2×4 Select Tunable LED Back‑Lit Panel is a high‑efficiency commercial lighting solution designed for flexible performance across a wide range of applications. Featuring field‑selectable wattage and color temperature, this panel allows installers to adjust light output and appearance on site, reducing SKU count and simplifying inventory.

Advanced back‑lit LED technology delivers smooth, uniform illumination with reduced glare, making it an ideal replacement for traditional fluorescent troffers in offices, schools, healthcare facilities, and retail environments.

---

Selectable Wattage & Lumen Output

(150 Lumens per Watt | Per Fixture)

---

Selectable Color Temperature (CCT)

• 3000K – Warm White

• 3500K – Neutral White

• 4000K – Cool White

• 5000K – Daylight

• 6500K – Bright White

Field selectable

---

Key Features

• SteelTech 2’ × 4’ LED back‑lit panel

• Field‑selectable wattage: 30W / 40W / 50W / 60W / 72W

• Field‑selectable CCT: 3000K / 3500K / 4000K / 5000K / 6500K

• High efficiency: 150 lumens per watt

• Back‑lit LED design for uniform illumination

• Reduced glare and flicker‑free performance

• 0–10V dimming standard

• Slim, low‑profile construction

• Designed for standard ceiling grid installations

---

Technical Specifications

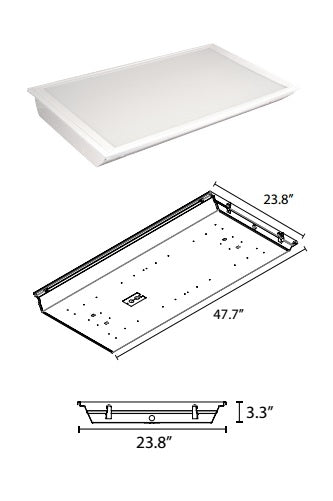

• Fixture Size: 2’ × 4’

• Input Voltage: 100–277VAC

• Wattage: Field‑selectable (30–72W)

• Lumen Output: 4,500–10,800 lumens

• Luminous Efficacy: 150 lm/W

• Color Temperature: Field‑selectable 3000K–6500K

• Dimming: 0–10V

• Lighting Technology: LED back‑lit panel

• Certification: ETL Listed

---

Applications

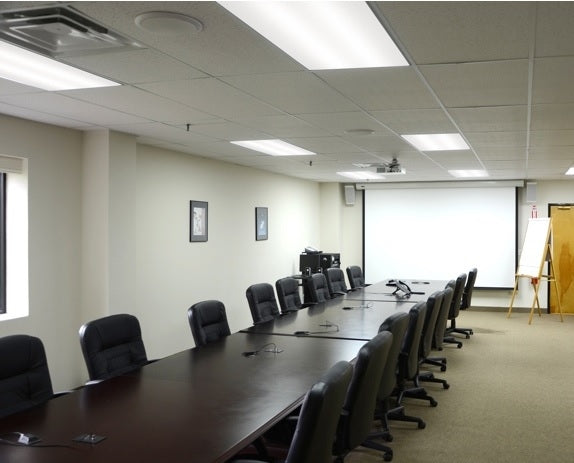

• Office lighting

• Educational facilities

• Healthcare environments

• Retail spaces

• Commercial ceiling grid installations

• Energy‑efficient fluorescent panel replacements
