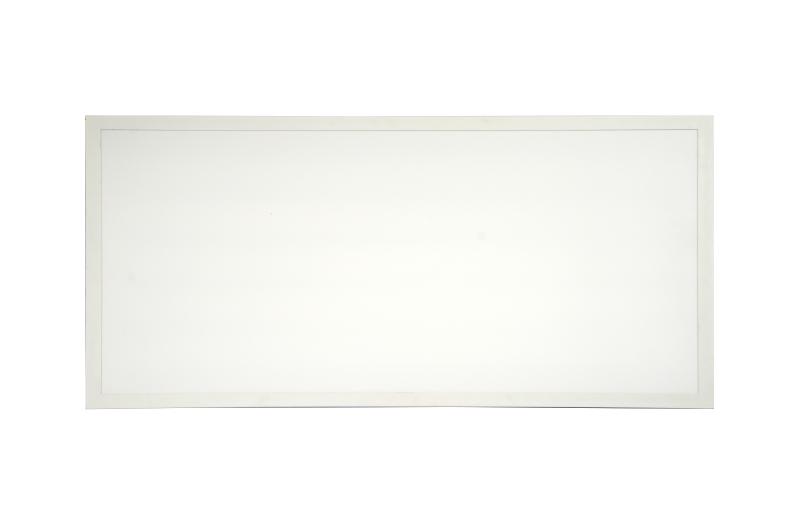

Steel Tech Lights 2’ × 4’ Tunable LED Back‑Lit Panel

Selectable Wattage & CCT | Up to 10,800 Lumens | ETL Listed

---

Product Overview

The Steel Tech Lights 2’ × 4’ Tunable LED Back‑Lit Panel is a high‑performance commercial lighting solution designed for maximum flexibility and efficiency. Featuring field‑selectable wattage and color temperature, this panel allows installers to fine‑tune output and light color on site, reducing inventory while meeting a wide range of application requirements.

With back‑lit LED technology, the panel delivers smooth, uniform illumination with excellent efficacy, making it an ideal replacement for fluorescent troffers in offices, schools, healthcare facilities, and retail environments.

---

Selectable Wattage & Lumen Output

(150 Lumens per Watt)

(Per fixture)

---

Selectable Color Temperature (CCT)

• 3000K – Warm White

• 3500K – Neutral White

• 4000K – Cool White

• 5000K – Daylight

• 6500K – Bright White

Field selectable.

---

Key Features

• 2’ × 4’ LED back‑lit panel

• Selectable wattage: 30W / 40W / 50W / 60W / 72W

• Selectable CCT: 3000K / 3500K / 4000K / 5000K / 6500K

• High efficiency: 150 lm/W

• Smooth, uniform illumination with reduced glare

• Slim, low‑profile design

• Ideal for retrofit or new construction

• Designed for standard ceiling grid installations

---

Technical Specifications

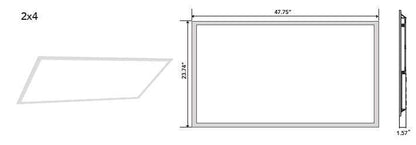

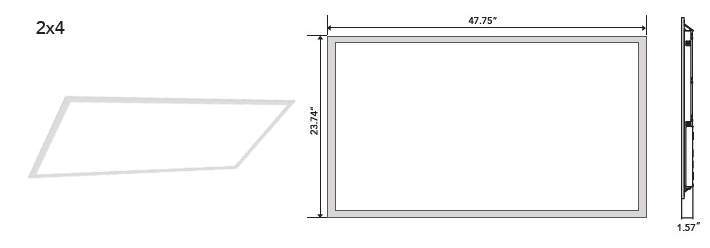

• Fixture Size: 2’ × 4’

• Wattage: Field‑selectable (30–72W)

• Lumens: 4,500–10,800 (depending on wattage)

• Luminous Efficacy: 150 lm/W

• Color Temperature: Field‑selectable 3000K–6500K

• Lighting Technology: LED back‑lit panel

• Certification: ETL Listed

---

Applications

• Office lighting

• Educational facilities

• Healthcare spaces

• Retail environments

• Commercial ceiling grid installations

• Energy‑efficient fluorescent troffer replacements
