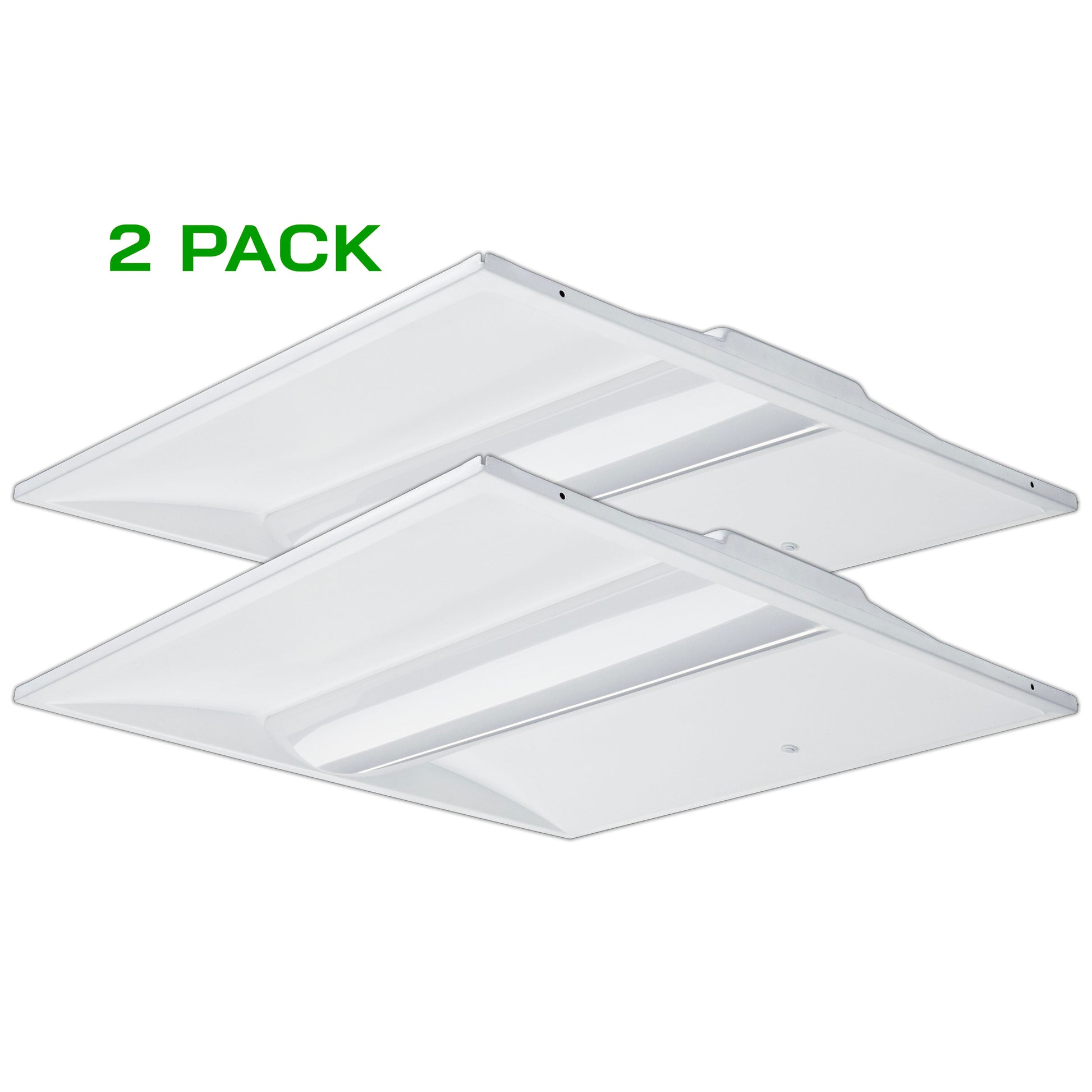

Steel Tech Lights 2’ × 2’ Tunable LED Center Basket Troffer Back‑Lit Panel – 2 Pack

Selectable Wattage & CCT | Up to 6,000 Lumens (Per Fixture) | 150 lm/W | ETL & DLC Listed

---

Product Overview

The Steel Tech Lights 2’ × 2’ Tunable LED Center Basket Troffer Back‑Lit Panel (2 Pack) is a high‑performance commercial lighting solution engineered for efficiency, flexibility, and visual comfort. Designed to fit standard 2’ × 2’ ceiling grid applications, this fixture replaces traditional fluorescent troffers while significantly reducing energy consumption.

Featuring field‑selectable wattage and color temperature, this troffer allows installers to adjust light output and color on site, minimizing inventory and simplifying specification. The center basket diffuser combined with back‑lit LED technologydelivers smooth, uniform illumination with reduced glare, making it ideal for offices, schools, healthcare facilities, and retail environments.

---

Pack Quantity

• 2 fixtures per order

• All performance specifications listed are per fixture

---

Selectable Wattage & Lumen Output

(150 Lumens per Watt | Per Fixture)

---

Selectable Color Temperature (CCT)

• 3000K – Warm White

• 3500K – Neutral White

• 4000K – Cool White

• 5000K – Daylight

• 6500K – Bright White

Field selectable.

---

Key Features

• Steel Tech Lights 2’ × 2’ LED center basket troffer back‑lit panel

• 2‑pack configuration

• Field‑selectable wattage: 20W / 25W / 30W / 35W / 40W

• Field‑selectable CCT: 3000K / 3500K / 4000K / 5000K / 6500K

• High efficiency: 150 lumens per watt

• Center basket diffuser for even light distribution and reduced glare

• Back‑lit LED technology for uniform illumination

• Flicker‑free performance

• 0–10V dimming standard

• Slim, low‑profile design

• Long‑life LEDs rated for 50,000+ hours

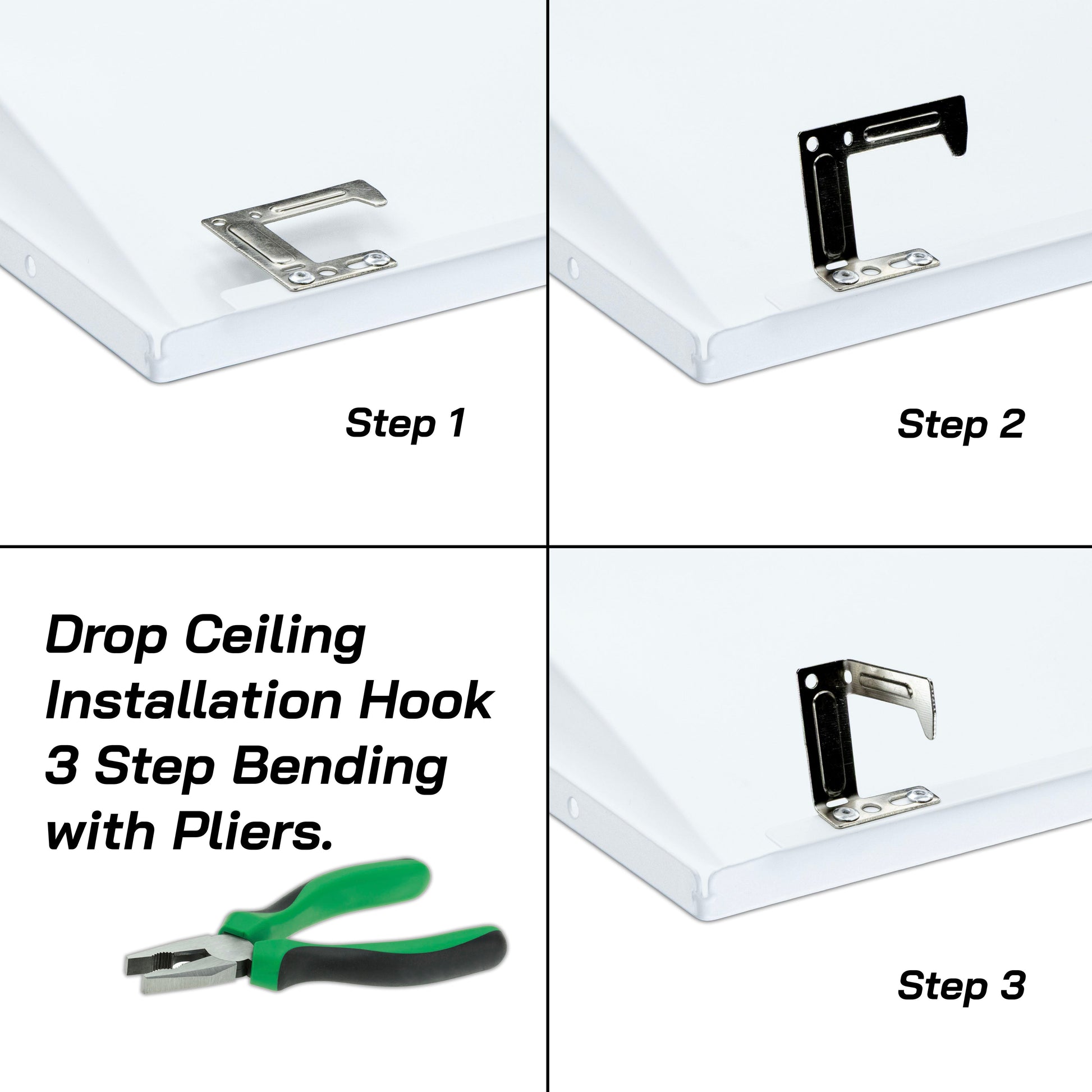

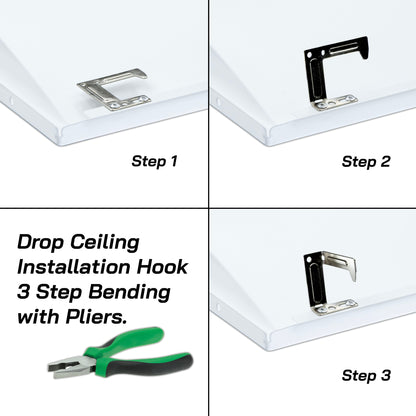

• Designed for standard ceiling grid installations

---

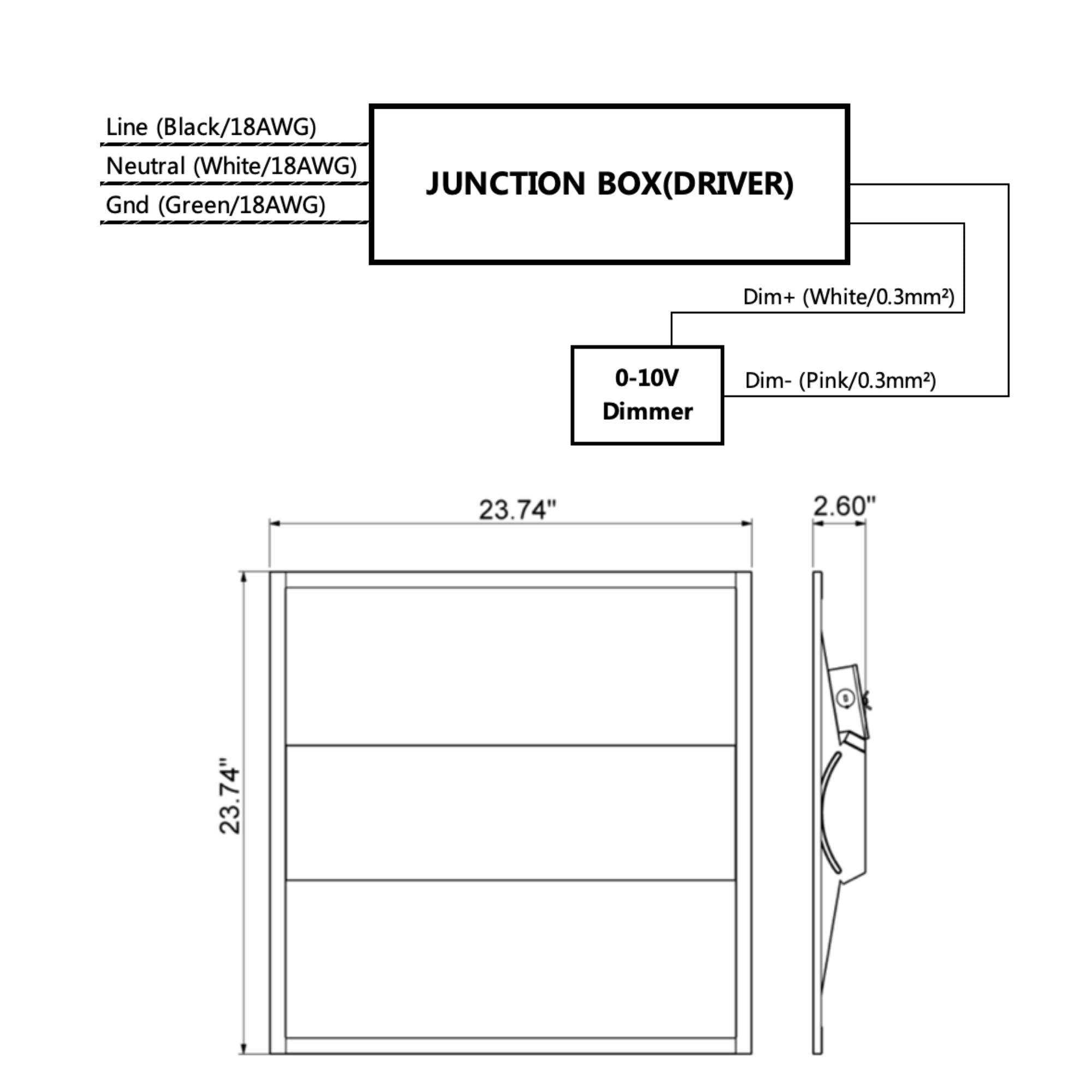

Technical Specifications (Per Fixture)

• Fixture Size: 2’ × 2’

• Input Voltage: 100–277VAC

• Wattage: Field‑selectable (20–40W)

• Lumens: 3,000–6,000

• Luminous Efficacy: 150 lm/W

• Color Temperature: Field‑selectable 3000K–6500K

• Dimming: 0–10V

• Lighting Technology: LED back‑lit panel with center basket diffuser

• Rated Life: 50,000+ hours

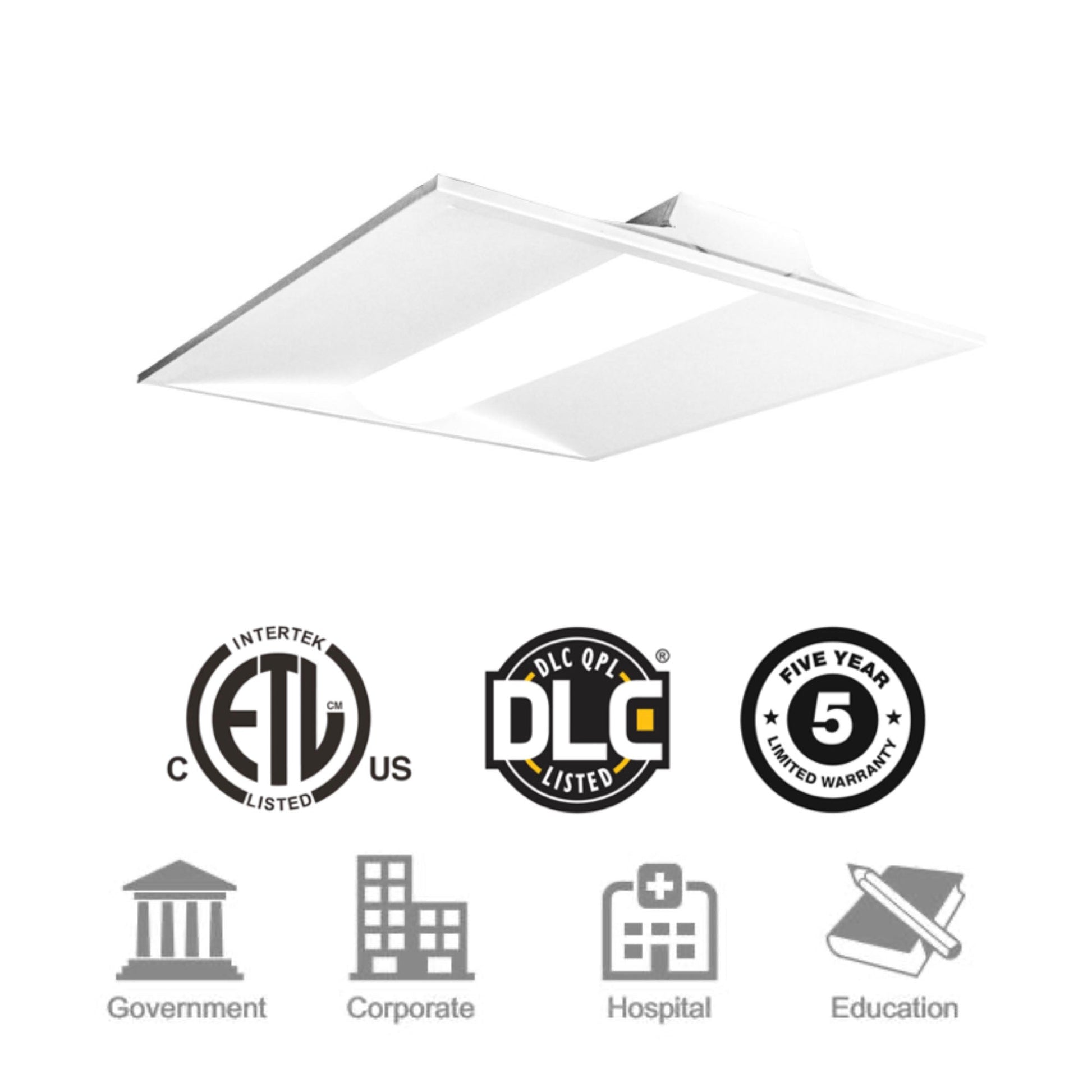

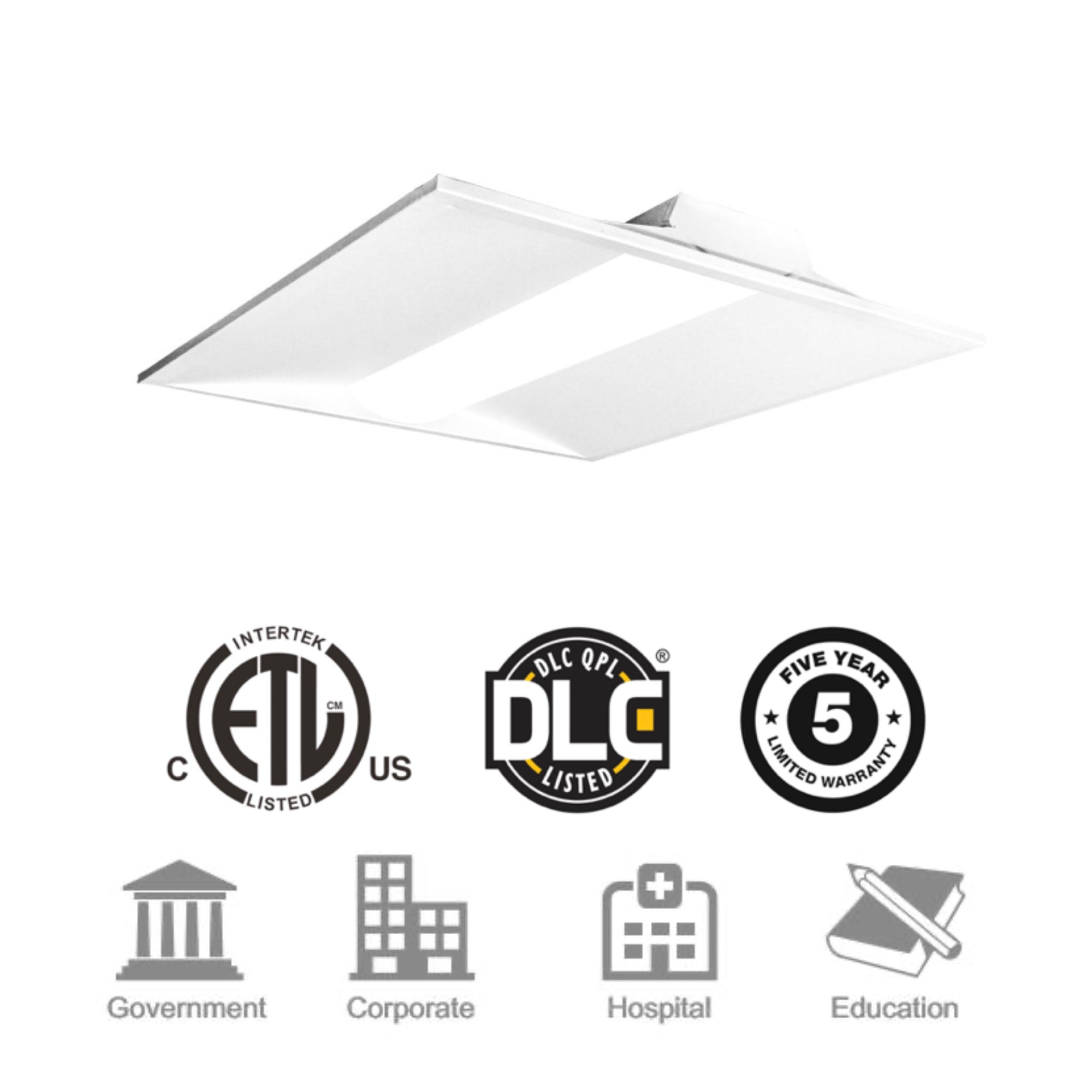

• Certifications: ETL Listed, DLC Listed

---

Applications

• Office lighting

• Educational facilities

• Healthcare environments

• Retail spaces

• Commercial ceiling grid installations

• Energy‑efficient fluorescent troffer replacements
