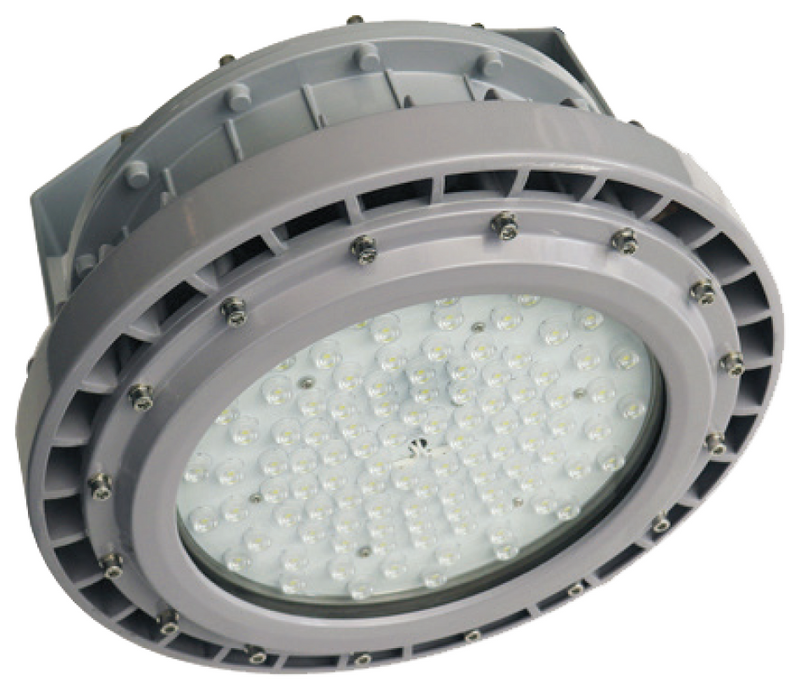

Explosion‑Proof LED Light Fixture – C Series

Steel Tech Lights | Industrial‑Grade Hazardous Location Lighting | 5‑Year Warranty

Product Overview

The Steel Tech Lights Explosion‑Proof LED Light Fixture – C Series is engineered for challenging industrial environments where safety, performance, and long‑term reliability are paramount. Designed specifically for hazardous, wet, and marine locations, this rugged fixture provides uniform, high‑output illumination while meeting strict compliance standards.

Constructed with a copper‑free aluminum housing and high vibration tolerance, the C Series delivers dependable performance in environments such as petroleum facilities, chemical plants, and offshore structures. The thoughtful design supports both surface and pendant mounting for installation flexibility.

Key Features & Benefits

• Explosion‑proof LED fixture engineered for hazardous industrial environments

• Industrial‑grade construction with premium, copper‑free aluminum housing

• High illumination efficiency with up to 140 lm/W

• Supports both surface and pendant mounting

• Wide and narrow optics available for uniform light distribution

• High vibration resistance for demanding conditions

• Designed for indoor, outdoor, wet, and marine use

• Backed by a 5‑Year Manufacturer Warranty for long service life

• Free shipping available on all quantities

Technical Specifications

Lumens Output:

• • 40W – 5,600 lm

  • 60W – 8,100 lm

  • 80W – 10,800 lm

  • 100W – 13,500 lm

  • 150W – 20,250 lm

  • 250W – 32,500 lm

Color Temperature: 5000K

Voltage: AC100‑277V

Beam Angle: 120°

CRI: >80

High Efficacy: Up to 140 lm/W

Optics: Wide & narrow distribution options

Mounting: Surface and pendant installations supported

Housing: Copper‑free aluminum for corrosion resistance

Vibration Resistance: High industrial vibration tolerance

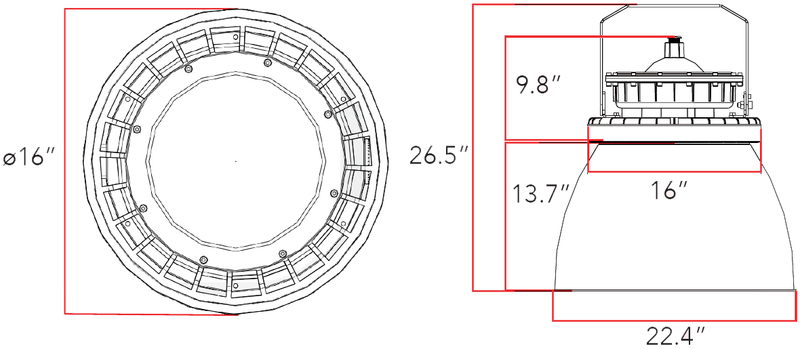

Dimensions

• Fixture Size: 16" × 16" × 10.5"

Certifications & Hazardous Location Ratings

Steel Tech Lights C‑Series fixtures are certified and designed for use in hazardous, high‑risk environments, meeting the following industry standards:

• NEMA 4X – Corrosion‑resistant, weather‑tight enclosure

• IP66 – Dust‑tight and protected against strong water jets

• IK10 – Impact‑resistant

• UL1598 & UL1598A – Luminaires for wet and hazardous locations

• UL844 – Hazardous location lighting standard

• CSA C22.2 No.137 / No.250.0 – Canadian safety standards

• Hazardous Location Classifications:

  • Class I, Division 1 — Groups C, D

  • Class I, Division 2 — Groups A, B, C, D

  • Class II, Division 1 — Groups E, F, G

  • Class II, Division 2 — Groups E, F, G

  • Class III

• Marine & Wet Location Rated

• ATEX Certified

• IECEx Certified

Applications

Steel Tech C‑Series fixtures are suitable for demanding industrial settings such as:

• Petroleum production, storage, and transportation facilities

• Chemical processing and storage areas

• Mining operations and fabrication shops

• Pumping stations in corrosive environments

• Offshore platforms and marine structures

• Aerospace clean rooms and production lines

• Flour and fine particle production zones

• Food processing and distilling facilities

• Electrical power generation and utility stations

• High humidity, high vapor, high dust, and high temperature locations

Quality, Reliability & Warranty

Steel Tech Lights explosion‑proof LED fixtures are engineered with rigorous quality control and industrial‑grade materials to deliver consistent performance in hazardous and demanding environments. Built for durability and long service life, these fixtures minimize maintenance needs and maximize operational uptime.

Each C‑Series fixture comes backed by a 5‑Year Manufacturer Warranty, providing long‑term protection and peace of mind for mission‑critical lighting applications.
