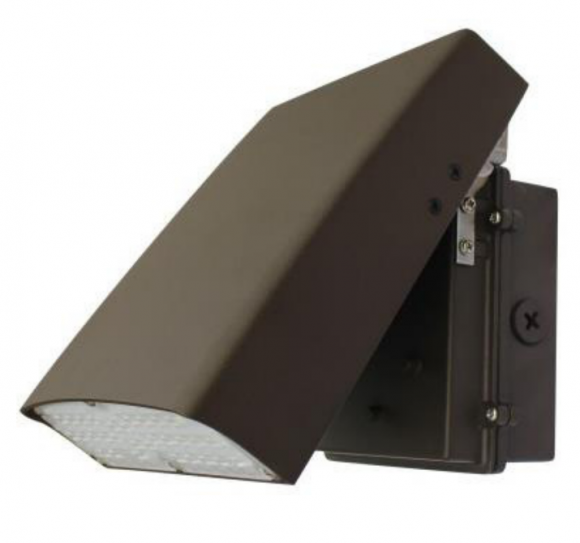

Steel Tech Lights 120W/100W/80W Versatile LED Wall Pack – Up to 15,375 Lumens – 120–277V – Selectable CCT – Built-In Photocell

Steel Tech Lights 120W/100W/80W Versatile LED Wall Pack – Up to 15,375 Lumens – 120–277V – Selectable CCT – Built-In Photocell – Outdoor Commercial Lighting

Certifications: UL/cUL Listed; Suitable for Wet Locations; IP65 Rated; RoHS Compliant
Warranty: 5-Year Warranty on Complete Fixture

Product Overview

The Steel Tech Lights 120W/100W/80W Versalite LED Wall Pack is a high-performance, energy-efficient outdoor lighting solution designed for commercial and industrial applications. Delivering up to 15,375 lumens, this fixture features selectable wattage and selectable color temperature for maximum flexibility across a variety of lighting environments.

Equipped with a built-in photocell for automatic dusk-to-dawn operation and a durable PC lens, this wall pack provides dependable performance, energy savings, and long-lasting durability in demanding outdoor conditions.

Engineered with a heavy-duty die-cast aluminum housing and adjustable hinge system, the fixture allows precise light positioning for either downward illumination near the mounting surface or broader outward light distribution.

Specifications

• Selectable Wattage: 120W / 100W / 80W
• Maximum Lumen Output: 15,375 Lumens
• Voltage: AC120–277V
• Color Temperature: Selectable 3000K / 4000K / 5000K
• Control: 0–10V Compatible
• Lens: PC Lens
• Photocell: Built-In Photocell Included
• IP Rating: IP65
• Rated Life: 69,000 Hours (L70)
• Operating Temperature: -20°C to 40°C (-4°F to 104°F)

Construction

• Heavy-duty die-cast aluminum housing
• Bronze polyester powder coat finish

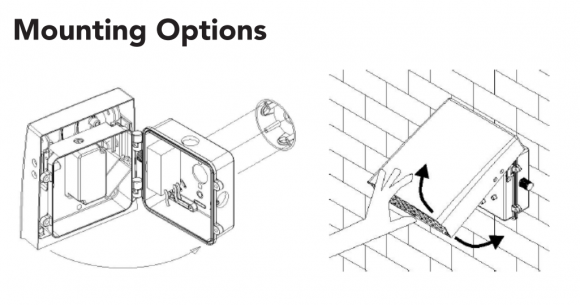

• Spring-loaded hinge for adjustable light direction (up to 95°)
• Knurled locking mechanism maintains fixture position
• Weather-resistant outdoor construction

Electrical

• Integrated LED driver
• Designed for efficient thermal management
• Compatible with standard AC120–277V systems
• Without DC12V

Features

• Selectable Wattage
• Selectable CCT
• Built-In Photocell
• 0–10V Compatible
• Adjustable light distribution
• High-output LED performance for HID replacement
• Durable weather-resistant construction
• Long lifespan with low maintenance

Applications

Wall Mount Applications

• Loading docks
• Building entrances
• Parking areas
• Perimeter lighting
• Underpasses

Flood Lighting Applications

• Signage illumination
• Building facades
• Displays
• Security lighting
